Bluetooth module BM-S02, X-BEE form factor (assembled)

Breakout board compatible with the XBee format and fitted with the Texas Instruments CC2540 Bluetooth 4.0 (Low Energy) module

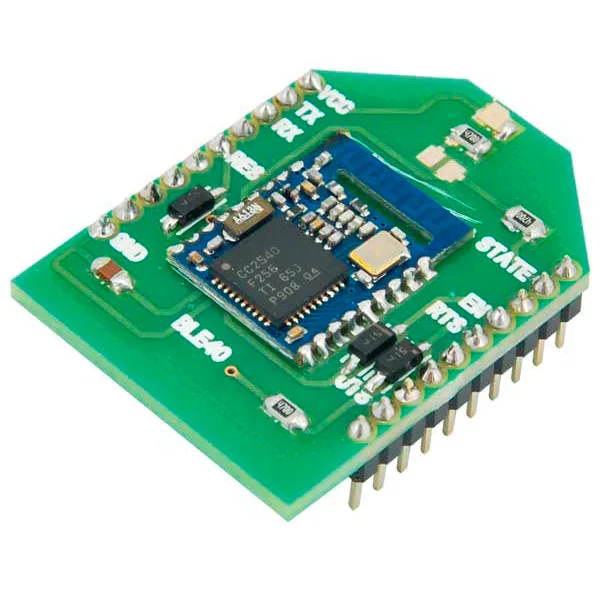

Bluetooth module BM-S02, X-BEE form factor (assembled) - Image 1

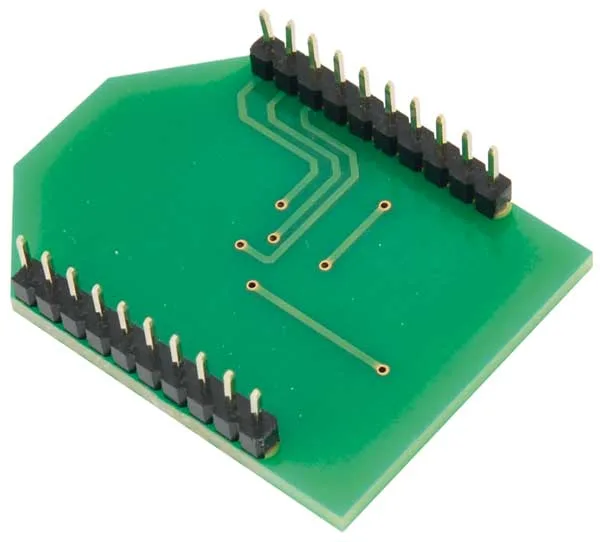

Bluetooth module BM-S02, X-BEE form factor (assembled) - Image 3

SKU 7100-FT1337MEAN 8219671090315Item type: Assembled, Shields & add-ons, ,

Description

Breakout board compatible with the XBee format and fitted with the Texas Instruments CC2540 Bluetooth 4.0 (Low Energy) module. It is particularly suited to being used with the “Base shield for Bluetooth” (not included – see related products), specially designed to take three different types of Bluetooth module (HC-05, BLECC2541, BLE40). Dimensions of the breakout board with the bluetooth module (mm): 33x25x10.

N.B. the “Base shield for Bluetooth” is not included, see related products.
Technical specifications of the BM-S02 module (BLE40)
Bluetooth 4.0 (Low Energy) module compliant with ISM 2.4 GHz, master/slave operation with transparent data transmission, built around the Texas Instruments CC2540 chip with 256K of Flash memory and 8K RAM. It can be controlled with simple AT commands (over UART) or programmed with custom applications. Ideal for use in projects that need a Bluetooth link, for example between a microcontroller and a PC. Supply voltage between 2 V and 3.6 Vdc. Dimensions (mm): 15.35×11.35×2.
  • Bluetooth 4.0 module compliant with ISM 2.4 GHz
  • Built around the Texas Instruments CC2540 SoC with 256K of Flash memory and 8K RAM
  • Supports master and slave modes
  • 10-bit ADC
  • Wake-up interrupt, Watchdog Timer
  • AES Security Coprocessor
  • Current consumption (at 25°C with VDD = 3 V):
    Power Mode 1 (3-µs Wake-Up): 235 uA
    TX 0 dBm: –
  • Operating temperature: -40°C to +85°C
  • Dimensions (mm): 15.35×11.35×2

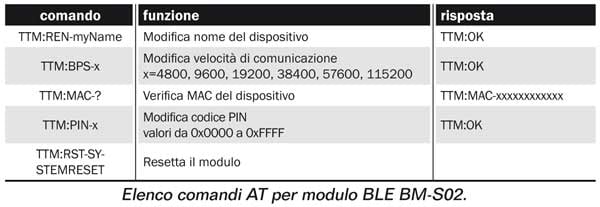

AT commands

Technical details

RX standard gain 19.6 mA
TX -6 dBm 24 mA
Frequency 2402 - 2483.5 MHz in 20 kHz steps
Modulation and data rate 1 Mbps, GFSK
Number of channels 40
Output power -23 to 4 dBm
Receive sensitivity -93dBm/-87dBm
Stack ATT, GATT, SMP, L2CAP, GAP
Range over 70 metres
Serial interface UART / SPI
Power supply between 2 V and 3.6 V
VDD ripple 100 mV max
Power Mode 3 (External Interrupts) 0.4 uA
Power Mode 2 (SleepTimerOn) 0.9 uA
