BRUSHLESS MOTOR DRIVER 7-12 VDC

Driver for small 3-wire and 4-wire brushless motors (without Hall sensor) with a supply voltage between 7 and 12 Vdc, such as those found in hard disks, CD players, etc

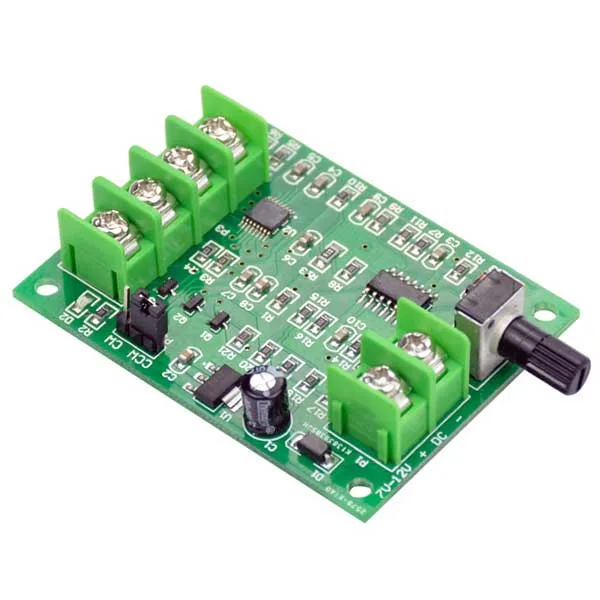

BRUSHLESS MOTOR DRIVER 7-12 VDC - Image 1
BRUSHLESS MOTOR DRIVER 7-12 VDC - Image 3
BRUSHLESS MOTOR DRIVER 7-12 VDC - Image 4

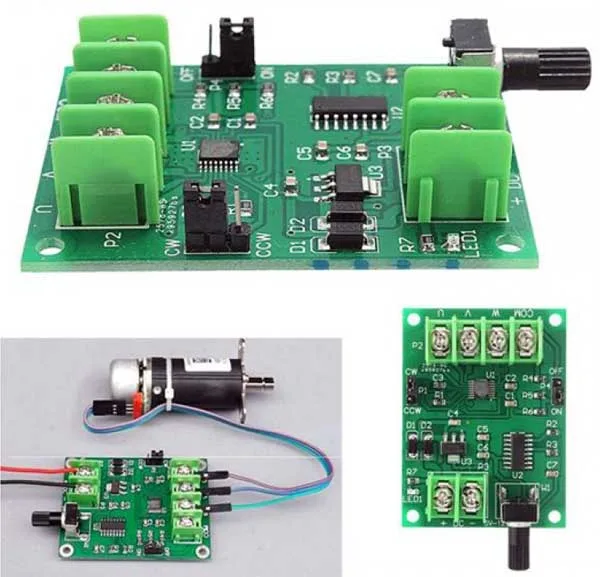

BRUSHLESS MOTOR DRIVER 7-12 VDC - Image 5

SKU 3085-DCDRIVERBLESSEAN 8219671092838Item type: Assembled

Description

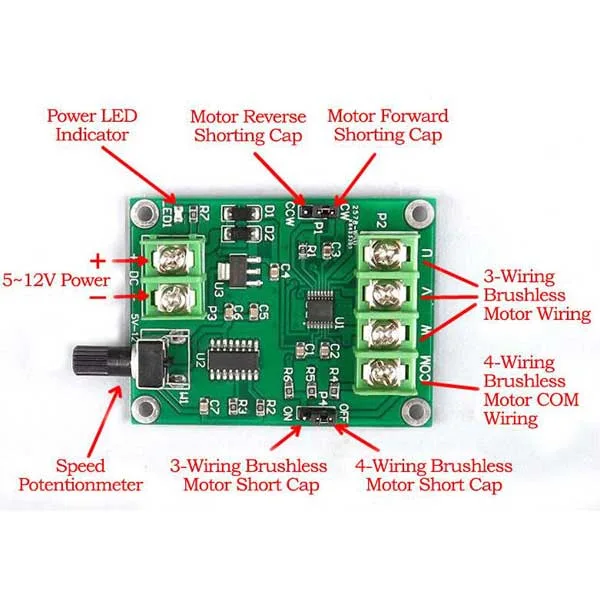

Driver for small brushless motors (without Hall sensor) with 3 and 4 wires, with power supply between 7 and 12 Vdc, such as those found in hard disks, CD players, etc. It features a potentiometer for speed adjustment, a jumper to set the rotation direction, and a status LED for power. It also includes protection against reverse polarity and overcurrent. Maximum speed is 10,000 rpm.

Technical details

Board and motor supply voltage from 7 Vdc to 12 Vdc
Motor current < 1.2 A
Speed adjustment from 0-100%
Protection reverse polarity and overcurrent
Phase reversal control yes

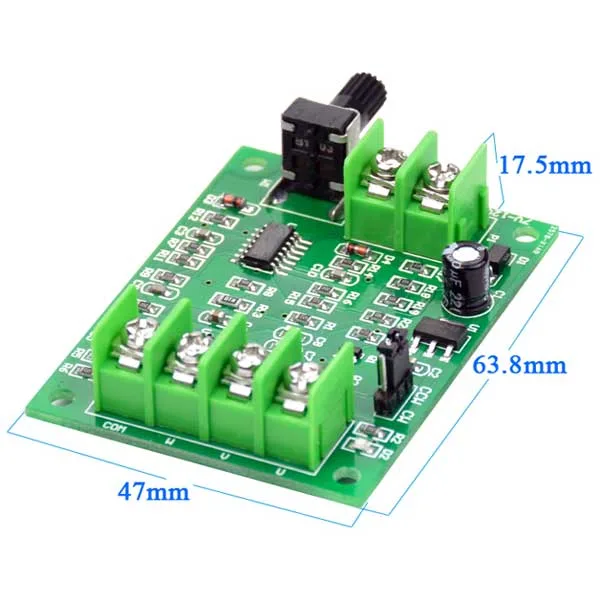

Dimensions (mm) 63.8x47x17.5
Weight 23 g
