Capacitive touch switch with blue LED

Small capacitive touch switch with 3.3 volt output, max current
Capacitive touch switch with blue LED - Image 1
Capacitive touch switch with blue LED - Image 3
Capacitive touch switch with blue LED - Image 4
Capacitive touch switch with blue LED - Image 5
Capacitive touch switch with blue LED - Image 6

SKU 2846-TOUCHSWITCHEAN 8219671098564Colour: Blue, TransparentLighting: LEDSwitch action: TouchItem type: Buttons & switches, Shields & add-ons

Description

Small capacitive touch switch with 3.3 V output, max. 500 mA current, blue LED illumination, monostable and bistable operation.

Equipped with debouncing, it activates immediately on touch without any delay.

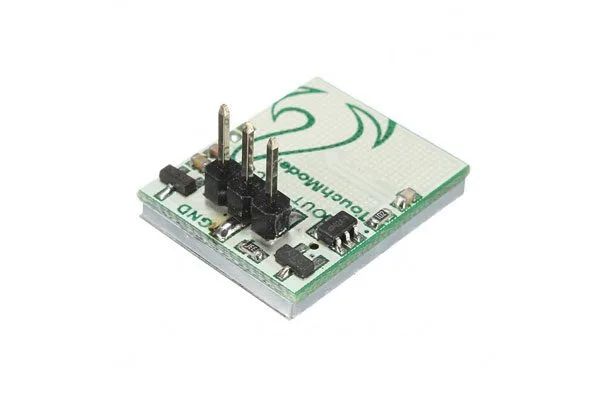

It uses only 3 pins (VCC, GND, OUT) and has a solder jumper to select monostable/bistable output mode.

Technical specifications

Technical details

Power supply 4 to 6 VDC
Operating temperature -30°C to +70°C
Output 3.3 VDC – max 500 mA

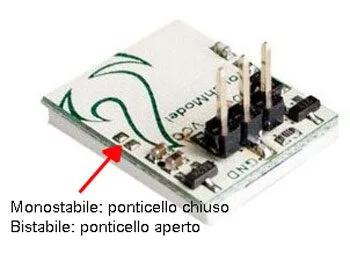

Monostable jumper closed
Bistable jumper open
Dimensions 20 x 16 mm
