Carrier Board for ESP8266 – Kit

Small board designed to host the ESP8266 Wi-Fi module (not included)

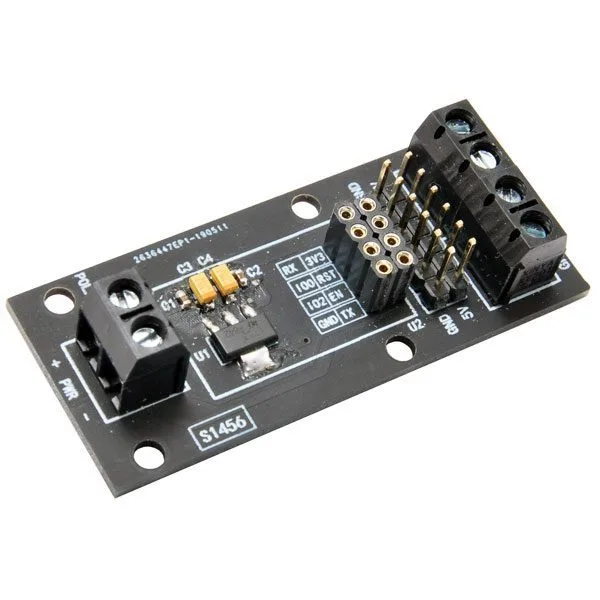

Carrier Board for ESP8266 - Kit - Image 1

SKU 7100-FT1456KEAN 8219671108935Item type: Kit, Shields & add-ons

Description

Small board designed to host the ESP8266 Wi-Fi module (not included). It has a 2-way terminal block for the power input; a 4-way terminal block carrying +5V, ground and the IO0 and IO2 lines (two GPIOs of module U2) that carry the data; and a connector (CN1) with the same signals as the ESP8266 module (so the UART TX and RX, the reset line and more are available) together with GND and +5V. Power supply: 5 VDC.

N.B. the board is supplied as a kit and also includes SMD parts.

Warning! the ESP8266 module is not included (see the related products).

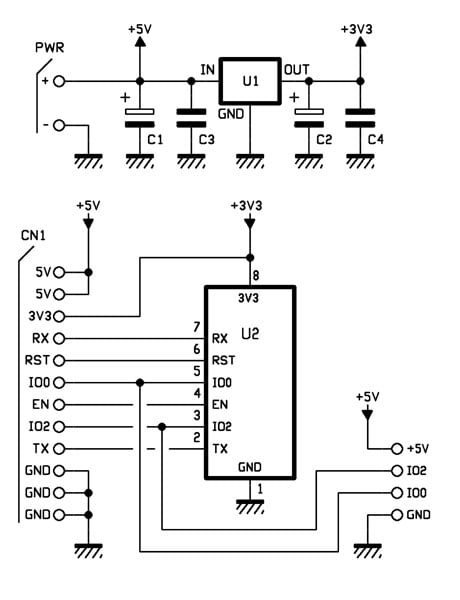

Circuit diagram
