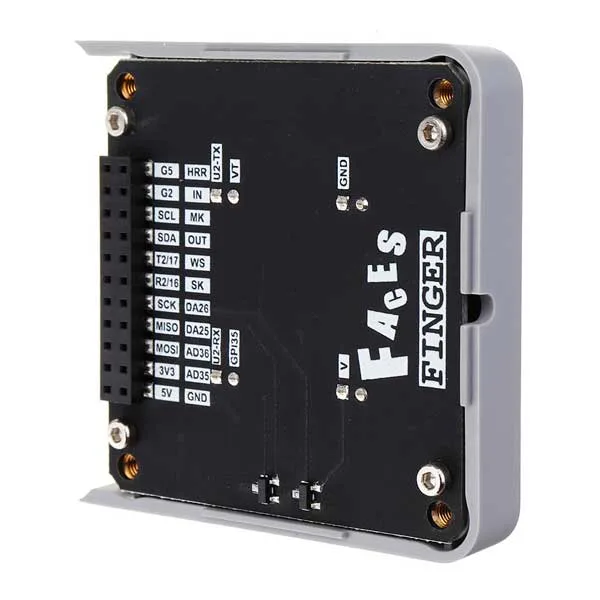

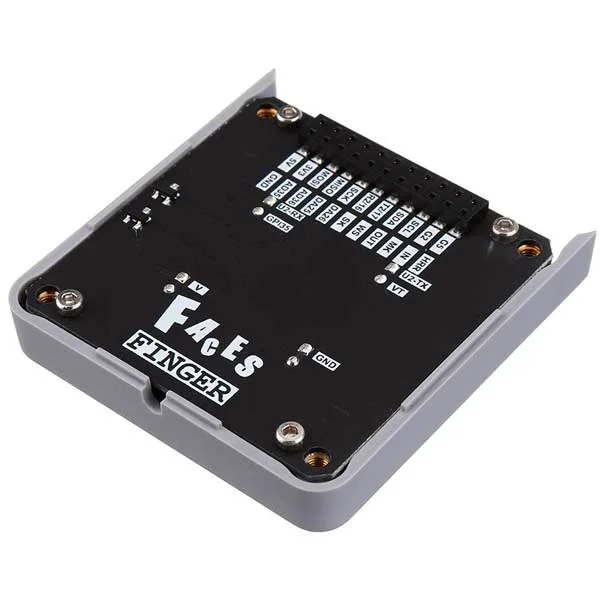

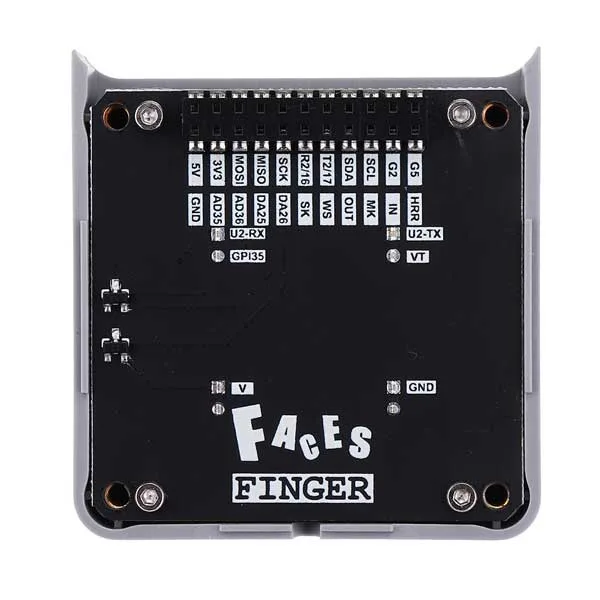

Fingerprint Reader Module for M5FACESPOCKET
Fingerprint recognition module based on the FPC1020 capacitive sensor
SKU 5330-M5FINGERPRINTEAN 8219671110570Item type: Assembled, Shields & add-onsArduino compatible, ESP8266 / ESP32
Description
Fingerprint recognition module based on the FPC1020 capacitive sensor. It is designed for use with the M5FACESPOCKET pocket computer (not included, see related products). Applications: time clocks, security, etc.
Electrical schematic
Documentation and useful links
- Datasheet FPC1020
Technical details
| Applications | time clocks, security, etc |
|---|---|
| Fingerprint sensor | FPC1020A capacitive |
| Detection matrix size | 160x160 pixels |
| Pixel resolution | 256 grayscale levels (8-bit) |
| Serial interface | UART2 (16/17) |
| Supply voltage VDD | 1.8 V typical |
| Clock frequency | SPI communication <12 MHz |
| Resolution | 508 DPI |
| Operating temperature | -20°C to +45°C |
| Dimensions (mm) | 57x54.5x10 |
