CC2541 Bluetooth module, XBee form factor (assembled)

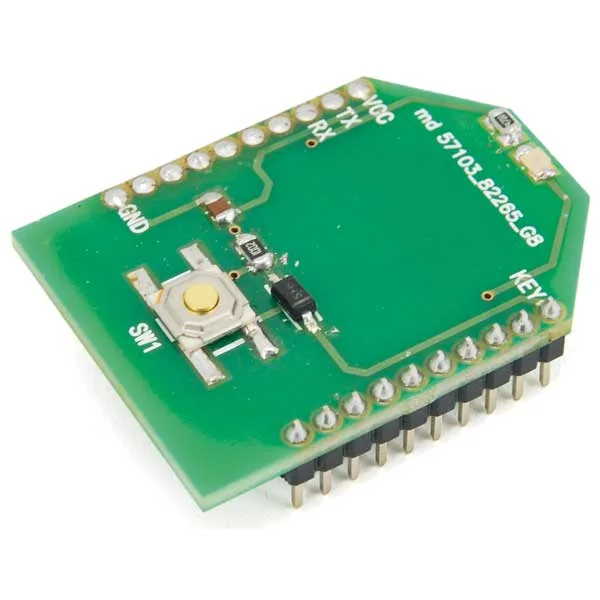

Breakout board in XBee form factor carrying the Texas Instruments CC2541 Bluetooth 4.0 (Low Energy) module

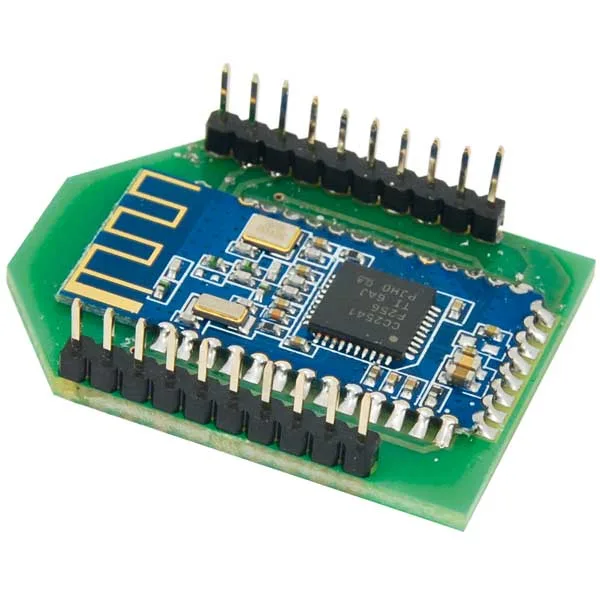

CC2541 Bluetooth module, XBee form factor (assembled) - Image 1
CC2541 Bluetooth module, XBee form factor (assembled) - Image 3

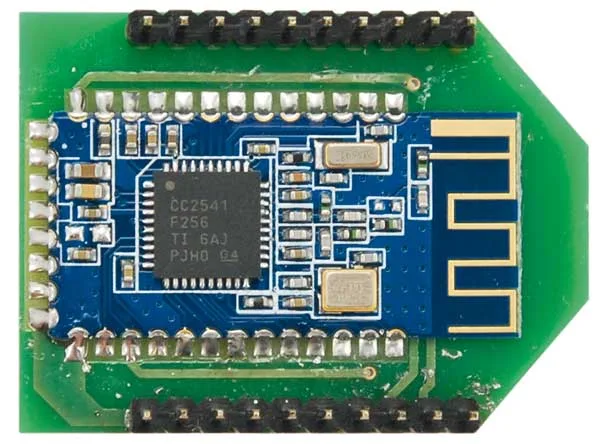

CC2541 Bluetooth module, XBee form factor (assembled) - Image 4

SKU 7100-FT1338MEAN 8219671090292Item type: Assembled, Shields & add-ons, ,

Description

Breakout board in XBee form factor carrying the Texas Instruments CC2541 Bluetooth 4.0 (Low Energy) module. It is especially suited to the “Bluetooth base shield” (not included – see related products), designed specifically to take three different types of Bluetooth module (HC-05, BLECC2541, BLE40). Size of the breakout board with the Bluetooth module fitted (mm): 33x25x10.

Please note: the “Bluetooth base shield” is not included, see related products.
CC2541 Bluetooth module technical specifications
Bluetooth 4.0 (Low Energy) module compliant with the 2.4 GHz ISM band, master/slave operation with transparent data transmission, based on the Texas Instruments CC2541 chip with 256K flash memory and 8K RAM. It can be driven with simple AT commands (over the UART) or programmed with custom applications. Ideal for projects that need a Bluetooth link, for example between a microcontroller and a PC. Supply voltage between 2 V and 3.6 Vdc.Dimensions (mm): 27x13x1.6, weight: 5 grams. Please note: SMT mounting.
  • Bluetooth 4.0 module compliant with the 2.4 GHz ISM band (HM-10)
  • Uses the Texas Instruments CC2541 SoC with 256K flash memory and 8K RAM
  • Supports master and slave mode
  • 10-bit ADC
  • Wake-up interrupt, Watchdog Timer
  • AES Security Coprocessor
  • Current consumption (at 25°C with VDD = 3 V):
    Power Mode 1 (3-µs Wake-Up): 235 uA
    TX 0 dBm: –
  • Operating temperature: -40°C to +85°C
  • Dimensions (mm): 27x13x1.6

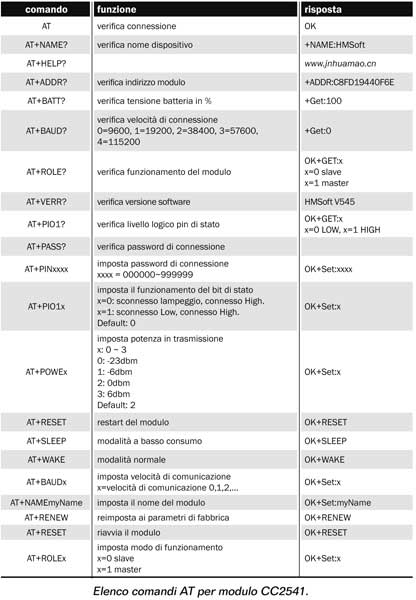

AT commands

Technical details

RX standard gain 19.6 mA
TX -6 dBm 24 mA
Frequency 2402 - 2483.5 MHz in 20 kHz steps
Modulation and data rate 1 Mbps, GFSK
Number of channels 40
Output power -23 to 4 dBm
Receive sensitivity -93dBm/-87dBm
Stack ATT, GATT, SMP, L2CAP, GAP
Range over 70 metres
Serial interface UART / SPI
Supply voltage between 2 V and 3.6 V
VDD ripple 100 mV max
Power Mode 3 (External Interrupts) 0.4 uA
Power Mode 2 (SleepTimerOn) 0.9 uA
