CNC mechanical kit 200x180x60
Hobby CNC frame with a PVC structure, suitable for engraving printed circuit boards, wood, plastic and aluminium
SKU 2846-CNC2018EAN 8219671078696Item type: KitCNC mechanics
Description

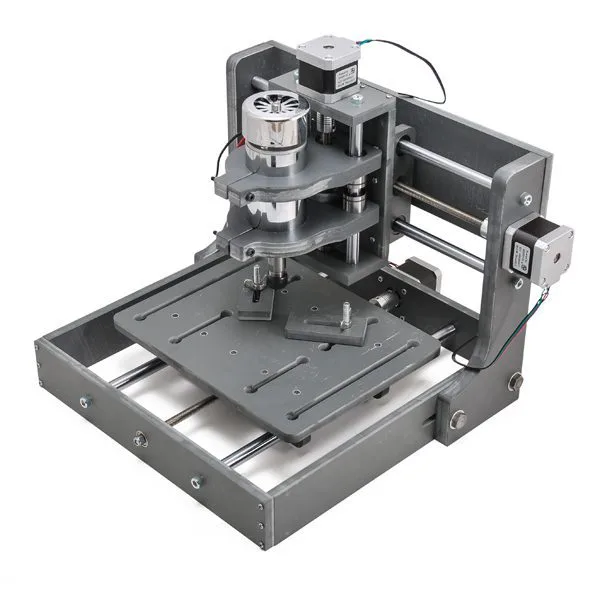

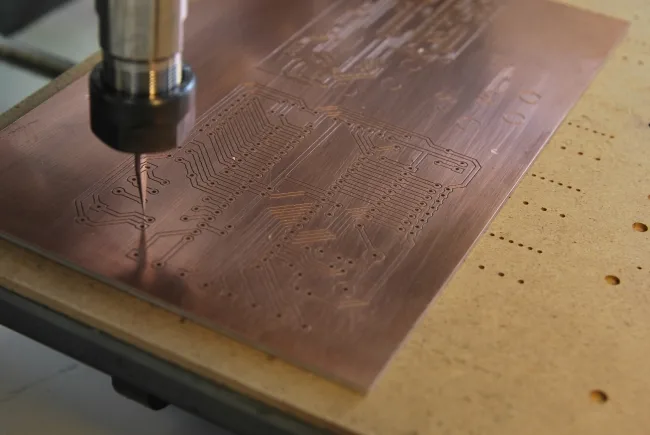

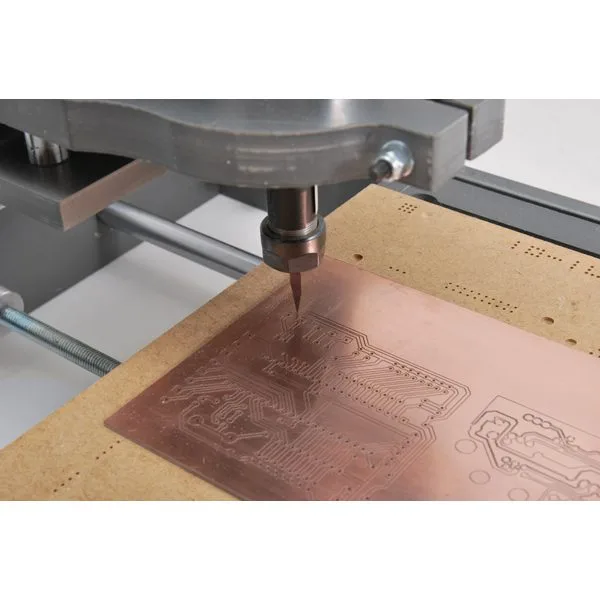

| Hobby CNC frame with a PVC structure, suitable for engraving printed circuit boards, wood, plastic and aluminium. 15 mm thick side plates, usable working area 200x180x60 mm, 240×190 mm PVC work table, XYZ axes with 12 mm diameter ground rods and 12 mm linear ball bushings, axes driven by 8 mm threaded rods complete with an aluminium coupling for a Ø5 mm motor shaft. Fitted with a mount for a 52 mm diameter spindle (see related products), it is ready to take NEMA 17 stepper motors.
The pack does not include: the CNC control software (any software can be used, such as MACH3, KCam, etc.), the three stepper motors (2846-STEPMOT03), the control board, the spindle (2846-ELEMANDER11) and the 24 Vdc 150 watt switching power supply: see the related products. |
|
Technical specifications
|
|
| Documentation and useful links |
| To install the profile in MACH3, download it from the link below, then copy the “3 ASSI 2018” folder into the “macros” folder where Mach3 is installed, while the “3 ASSI 2018.xml file must be copied into the main Mach3 directory. |
Technical details
| Structure | PVC |
|---|---|
| Maximum overall size (mm) | 390 (width) x 370 (length) x 310 (height – motors included) |
| Work table (mm) | PVC 240x190 |
| Travel | XYZ axes with ground rods and 12 mm linear ball bushings |
| Spindle mount | 52 mm diameter |
| Nema 17 motor mount | (43x43 mm - 5 mm shaft) |
| Weight | 7.5 kg |
