NEMA 17 Bipolar Stepper Motor – 1.5 A

4-wire Nema17 bipolar stepper motor

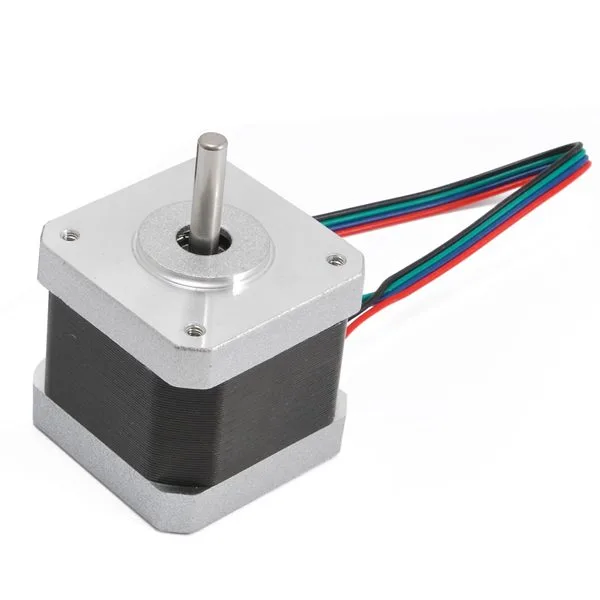

NEMA 17 Bipolar Stepper Motor - 1.5 A - Image 1
NEMA 17 Bipolar Stepper Motor - 1.5 A - Image 3

SKU 2846-STEPMOT03EAN 8219671078702, ,

Description

Bipolar Nema17 stepper motor, 4 wires. Ideal for use with the CNC2018 and for all applications requiring precision in angular displacement and rotation speed, such as in robotics and servomechanisms.

Technical details

Mounting Nema 17
Shaft diameter 5 mm
Step angle 1.8° ±5%
Number of wires 4, about 15 cm long
Number of phases 2
Phase current 1.5 A
Resistance per phase 2.3 Ω ±10%
Inductance per phase 3 mH ±20%
Insulation class B
Max. no-load starting frequency 1400 pps
Max. no-load operating frequency 8000 pps
Dimensions (mm) 42.3 x 42.3 x 40
Operating temperature -20°C to +50°C
Weight 283 g
