L298 driver for DC/stepper motors

Built around the ST L298N chip, this module was designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC motors and stepper motors.

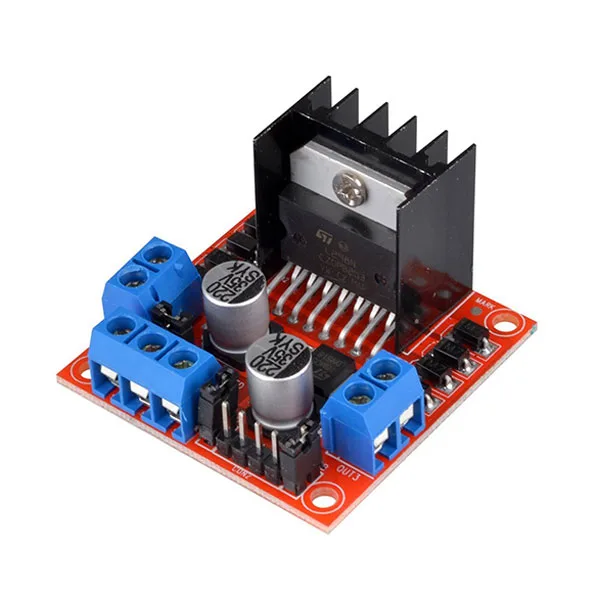

L298 driver for DC/stepper motors - Image 1

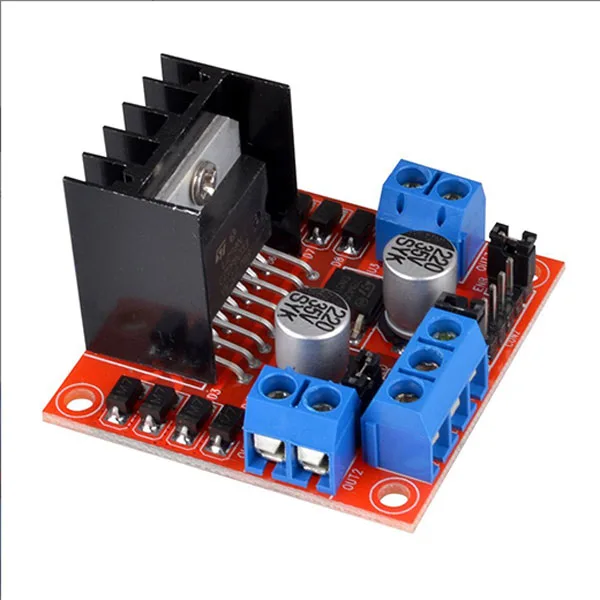

L298 driver for DC/stepper motors - Image 3

SKU 2846-L298DRIVEREAN 8219671062541Item type: Assembled

Description

Based on the ST L298N chip, this module is designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepper motors.
It can reverse the motor rotation direction. It features control inputs for stepper and DC motors, motor direction indicator LEDs, power presence LED, and a base with 4 mounting holes. Control logic supply voltage from 4.5 to 5.5 V, motor supply voltage from 6.5 to 30 Vdc, peak output current per channel: 2 A. Dimensions (mm): 54x43x30. For more information see the L298N datasheet.

Technical specifications

Technical details

peak output current per channel 2 A. Dimensions (mm): 54x43x30
Driver L298
Motor supply voltage 6.5 to 30 V
Control logic supply voltage 4.5 to 5.5 V - 36 mA
high 4.5-5.5V
low 0V
Operating temperature -25°C to +130°C
Dimensions (mm) 54 x 43 x 30
Weight 33 g
