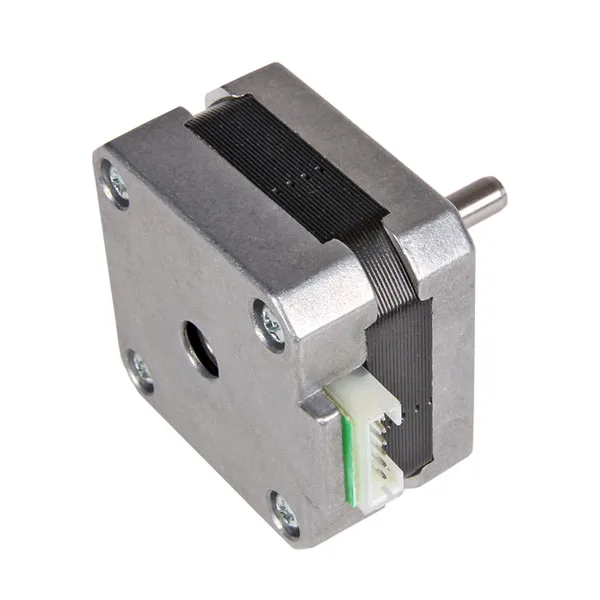

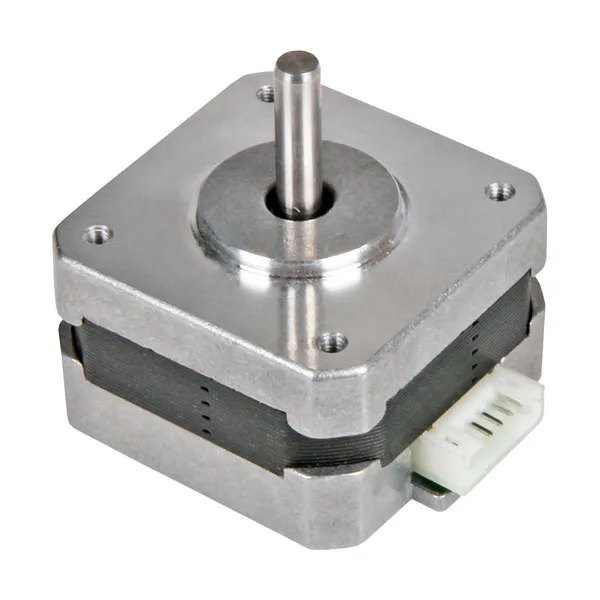

NEMA 17 Bipolar Stepper Motor – 1.2 A
Compact bipolar stepper motor (42x42x27 mm), NEMA17, 4-wire
SKU 2860-NEMA17-03EAN 4250236818764Actuators, CNC accessories, Motors
Description
Compact bipolar Nema17 stepper motor (42x42x27 mm), 4-wire. Ideal for use with CNC, 3D printers, robotics, and all applications requiring precision in angular displacement and rotation speed. The package includes: the stepper motor and the pigtail cable with a connector on one end and tinned wires on the other.
Technical specifications
- Dimensions (mm): 42x42x27
- Operating temperature: from -10°C to +50°C
- Weight: 150 grams
Click on the image to enlarge
Technical details
| Mounting | Nema 17 |
|---|---|
| diameter | 5 mm |
| length | 18 mm |
| Number of steps | 200 |
| Step angle | 1.8° |
| Number of wires | 4, about 30 cm long |
| Number of phases | 2 |
| Phase current | 1.2 A |
| Resistance per phase | 4.2 ohm |
| Inductance per phase | 5.6 mH |
| Insulation resistance | 100 MΩ at 500 VDC |
| Insulation class | B (130°) |
| Holding torque | 0.2 Nm |
| Detent torque | 0.012 Nm |
