Tungsten Carbide End Mill Set, 10 Pieces, 1/8″

CNC end mill set, 10 pieces, 38mm length.

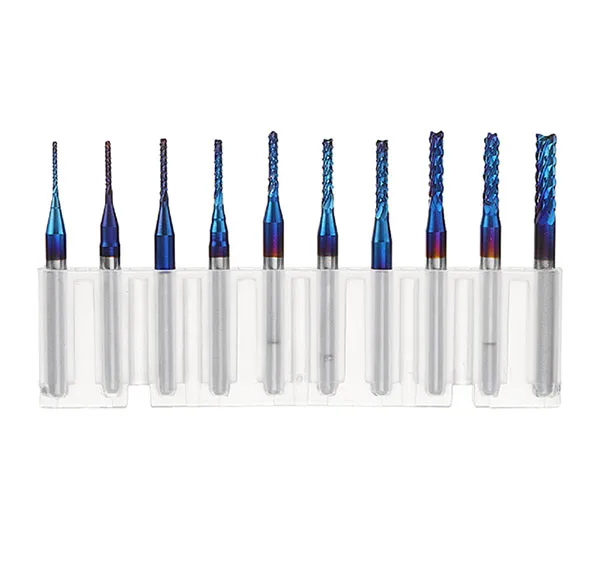

Tungsten Carbide End Mill Set, 10 Pieces, 1/8" - Image 1

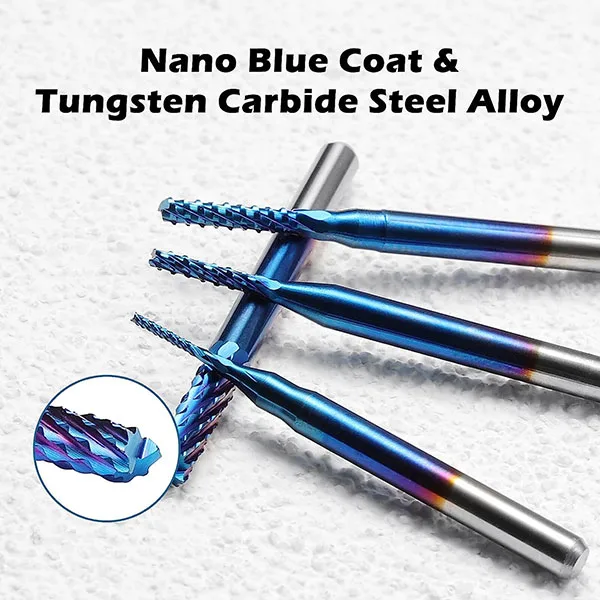

Tungsten Carbide End Mill Set, 10 Pieces, 1/8" - Image 3

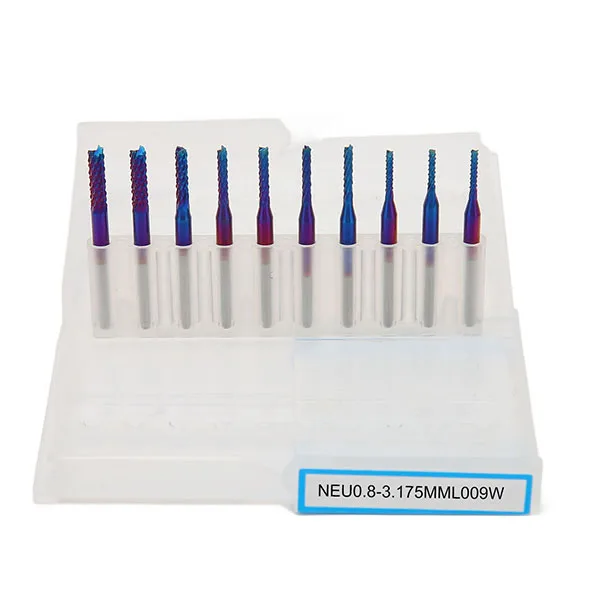

Tungsten Carbide End Mill Set, 10 Pieces, 1/8" - Image 4
Tungsten Carbide End Mill Set, 10 Pieces, 1/8" - Image 5

SKU 1606-FRESE10SETEAN 5410329406523

Description

Set of end mills for CNC milling machines made of tungsten carbide and coated in blue NANO coating, specifically designed for milling and engraving on PCBs, wood, and carbon fiber.
Technical specifications
  • Material: tungsten carbide with blue NANO coating (Aluminum Titanium Carbonitride)
  • Cutting diameter: 0.8 mm, 1.0 mm, 1.2 mm, 1.4 mm, 1.6 mm, 1.8 mm, 2.0 mm, 2.2 mm, 2.4 mm, 3.0 mm ( 10 pieces in total )

Technical details

Shank diameter 3.175 mm
Total length 38 mm
