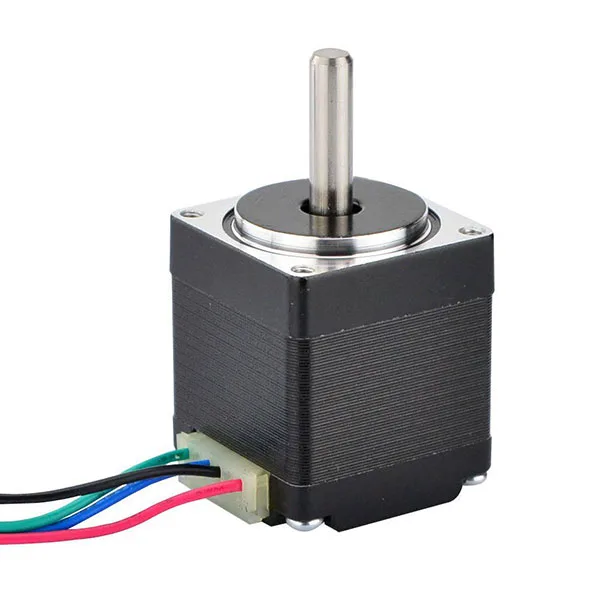

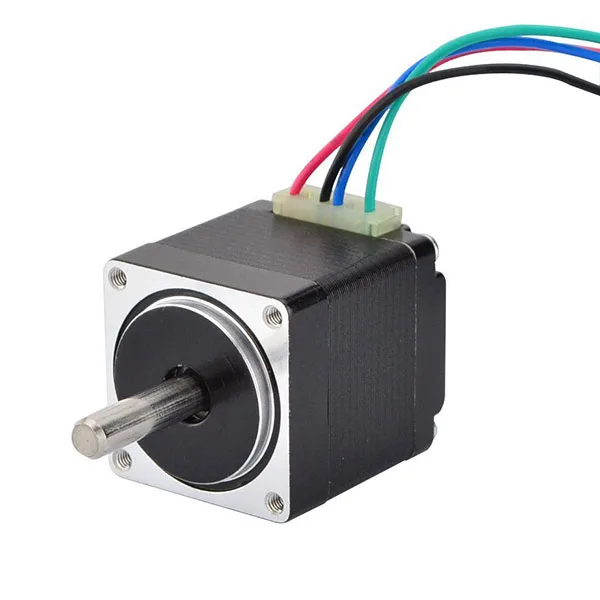

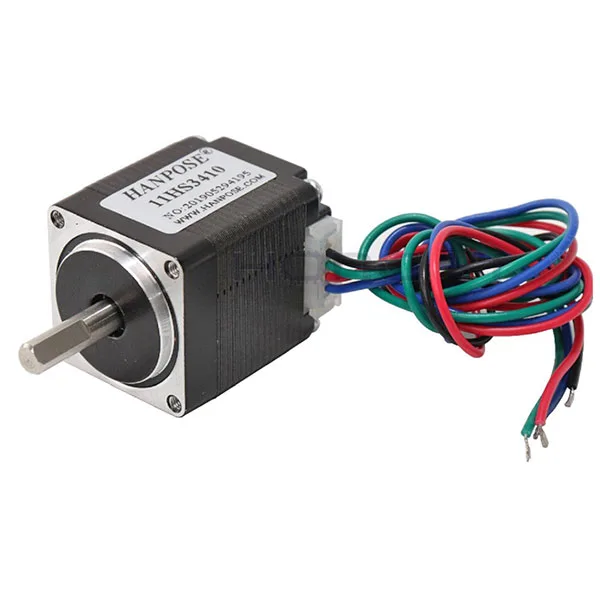

NEMA 11 stepper motor – 1 A
Compact, precise NEMA 11 stepper motor, ideal for CNC, robotics and automation systems where space is tight.
SKU 1606-11HS3410Accessories, Actuators, CNC accessories, Motors
Description
Compact, precise stepper motor designed for applications where space is tight but high positioning accuracy is required.
With a step angle of 1.8°, it delivers smooth, controlled movement, which makes it ideal for automation systems, light robotics, measuring instruments, small CNC machines and compact 3D printers.
Its 34 mm body makes it extremely compact while keeping good reliability and operating precision. It is perfect for advanced electronics projects and embedded applications.

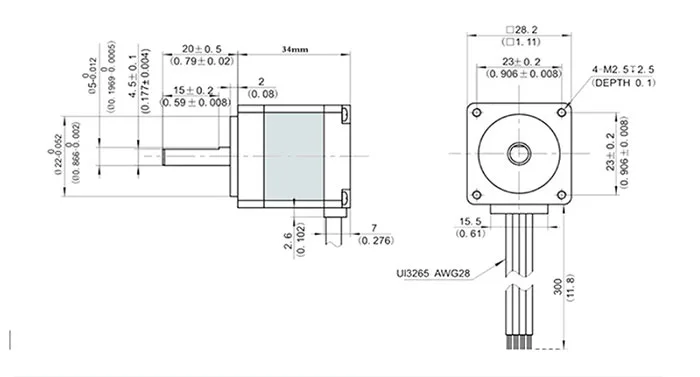

Dimensions
Technical specifications
- Wiring: red A+, green A−, yellow B+, blue B−
Technical details
| Type | bipolar stepper motor |
|---|---|
| Step angle | 1.8° |
| Steps per revolution | 200 |
| Number of wires | 4 |
| Rated current | 1 A |
| Typical voltage | 12 V |
| Resistance per phase | 4.0 Ω |
| Holding torque | 0.10 N·m |
| Size | NEMA 11 (~28 mm flange) |
| Height | 34 mm (shaft excluded) |
| Body material | metal |
| Cable length | 30 cm |
| Weight | 123 g |
