Stepper motor driver up to 3.5 A

Description

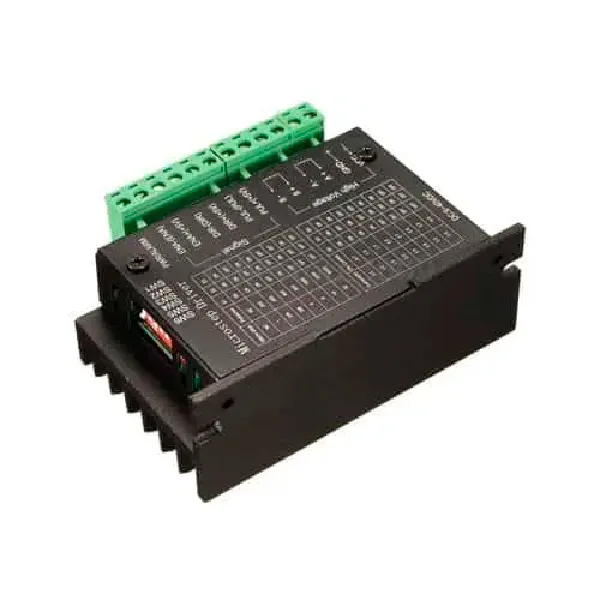

Based on the TB6600 chip, this compact driver can control a single bipolar stepper motor with a maximum current of 3.5 A (4 A peak). It uses a circuit that allows the motor to run smoothly while minimizing noise and vibration. It provides high torque even at very high operating speeds. Via its DIP switch, you can select an output current between 0.5 A and 3.5 A and one of 6 motor control modes: full step, 1/2 step, 1/4 step, 1/8 step, 1/16 step, and 1/32 step. Control logic supply: 5 V; motor supply: 9 V to 42 V.
Suitable for use in X-Y-Z tables, labelers, laser cutters, engraving machines, pick-and-place devices, etc. Warning! To avoid burning out the driver, do not exceed the specified voltage values.

Technical specifications

• Overvoltage, overcurrent, and phase short-circuit protection
• 6 motor control modes (step): 1/2/4/8/16/32
• Input electrical signal is TTL compatible
• Low noise and vibration
• High torque at high speed

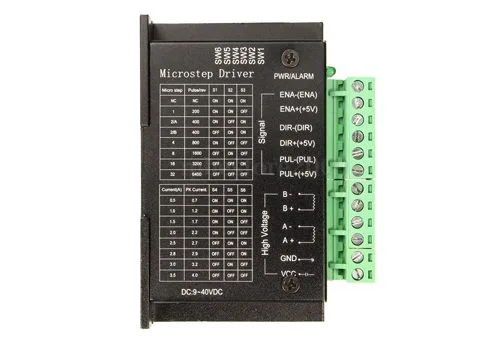

PIN OUT
