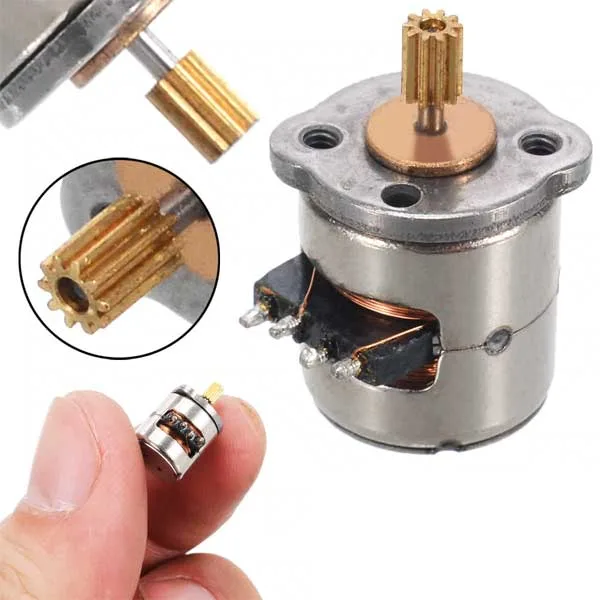

Micro stepper motor, 8 mm diameter

Description

Ultra-small bipolar stepper motor, Dimensions (mm): 8 mm (diameter) x 9.2 (length), motor shaft (mm): 0.8 (diameter) x 4 (length), 3-volt supply, weight: 2 grams. Ideal for projects requiring extremely small dimensions such as: robotics, automation, etc.

Thanks to its 18-degree step angle and 20 steps per revolution capability, it offers smooth and reliable control. The high torque, low noise, and coil resistance of 40Ω±7% make it ideal for demanding applications.

Note: supplied without wires soldered on the phases.

Dimensions

• Dielectric strength: 3 mA Max
• Operating temperature range: -10~+50 ℃
• Noise: 50 dB Ref.
• Output shaft diameter: 0.8mm
• Output shaft length: long shaft 4mm, short shaft 3.5mm
• Copper gear outer diameter: 2.0mm (9 teeth, 0.2 module)
• Weight: 6g (Ref.)
• Color: Silver
