Stepper motor driver up to 5 A

Description

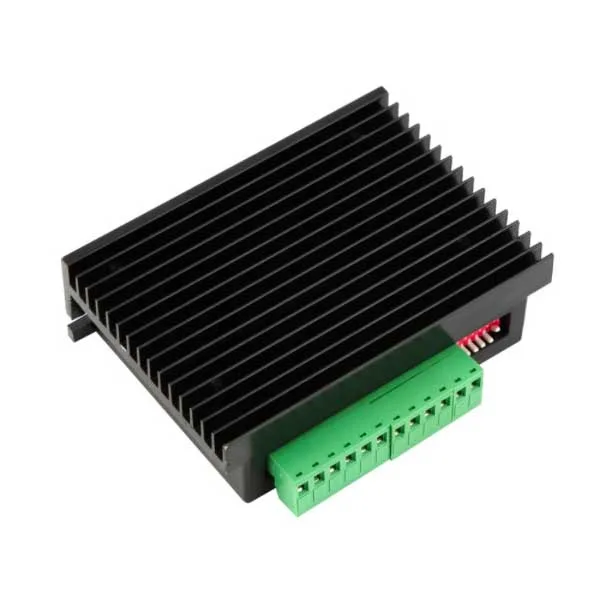

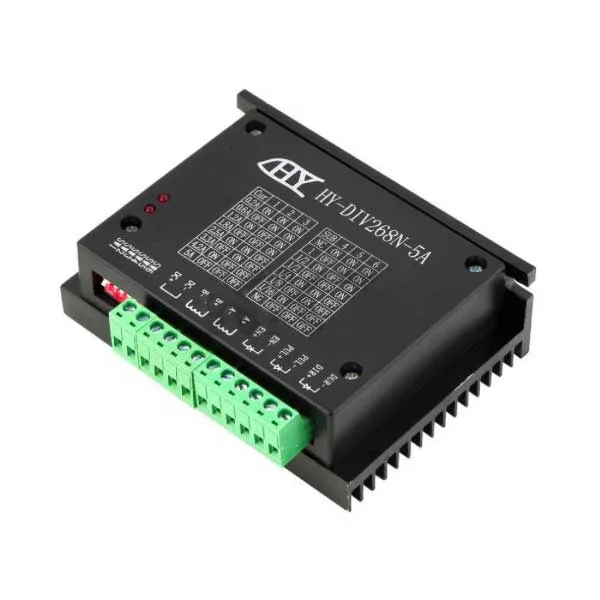

Based on the TB6600HG chip, this compact driver can control a single bipolar stepper motor with a maximum current of 5 A. It uses a circuit that allows the motor to run smoothly, minimizing noise and vibration. It can be used with 2- and 4-phase motors (4, 6, and 8 wires). It provides high torque even at very high operating speeds. Via its DIP switch, you can select an output current between 0.2 A and 5 A and one of 6 motor control modes: full step, 1/2 step, 1/4 step, 1/8 step, 1/16 step. Power supply: 12 Vdc to 45 Vdc, weight: 247 grams. Suitable for use in CNC, X-Y-Z tables, labeling machines, laser cutting, engraving machines, pick-and-place devices, etc.

Warning! To avoid burning the driver, do not exceed the indicated voltage values.

Technical specifications

• Overload, overheat, and overvoltage protection
• 6 motor control modes (step): full, 1/2, 1/4, 1/8, 1/16
• Low noise and vibration
• High torque at high speed

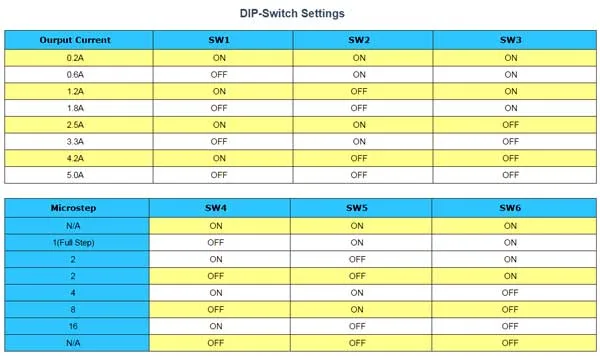

DIP Switch Settings
