Current Transformer 5 A
Galvanically isolated current measuring transformer, for use wherever you need to sense current draw without electrical contact with the low-voltage circuit.
SKU 7300-ZEMCT131AEAN 8219671115780Item type: AssembledSensors
Description
| Galvanically isolated current measuring transformer, for use wherever you need to sense current draw without electrical contact with the low-voltage circuit. The secondary carries a current proportional to the one feeding the primary. The primary/secondary current ratio is 2000:1, so a current of 5 amperes in the primary gives 2.5 milliamperes in the secondary across a 100 ohm load. Insulation from the measuring circuit is guaranteed up to 3,000 volts, as required by the safety standards for mains-connected equipment. |
|
Technical details
| Model | ZEMCT131A |
|---|---|
| Operating voltage | 0÷230 Vac |
| Operating frequency | 50-60 Hz |
| Measurable current | 0 to 5 A |
| Peak current | 20 A |
| Rated output current | 2.5 mA with 5 A input (across a 100 ohm load) |
| Output voltage | 1/20 of the current across a 100 ohm load |
| Input/output current reduction ratio | 2000:1 |
| Linearity | 0.1% |
| Insulation voltage | 3000 V |

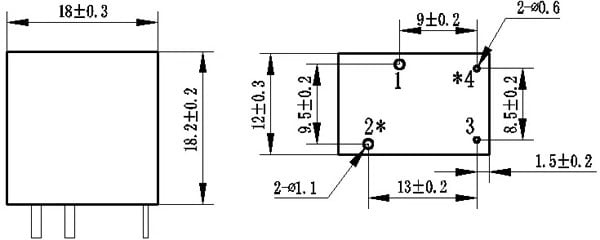

| Dimensions (mm) | 18.2x18x12 |
| Operating temperature | -40°C to +85°C |
