D203S motion sensor module

Compact PIR sensor with motion detection up to 5 metres and a 120° angle, ideal for automation, security and home-automation projects.

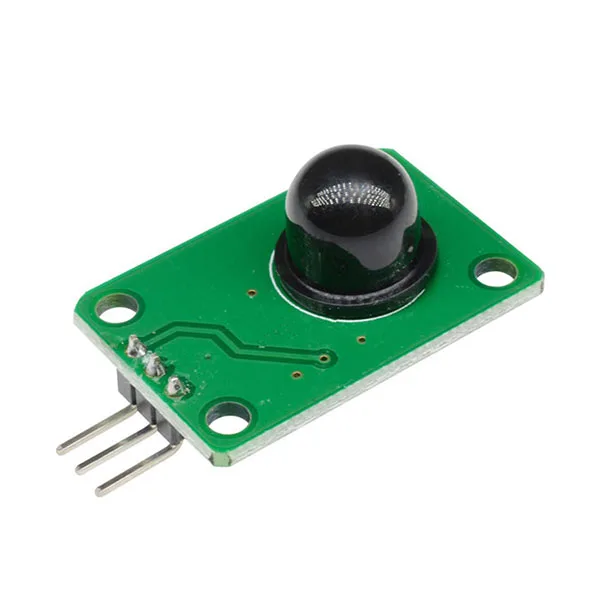

D203S motion sensor module - Image 1

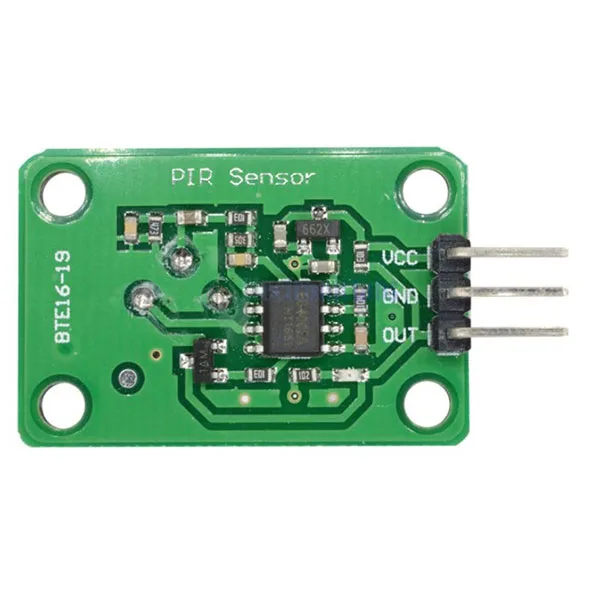

D203S motion sensor module - Image 3

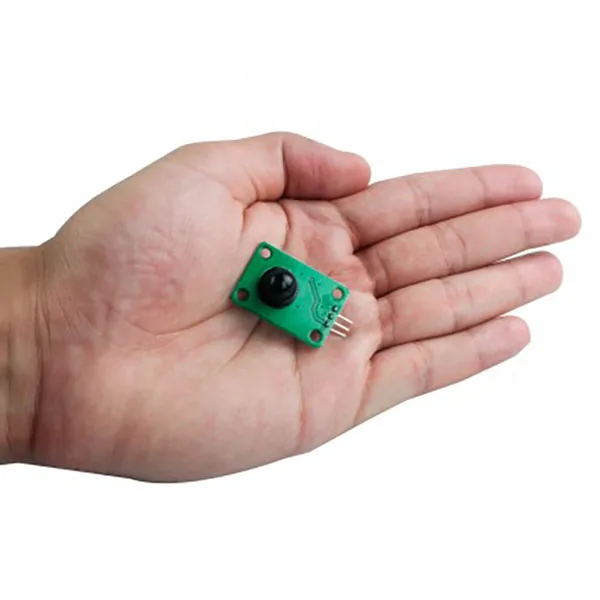

D203S motion sensor module - Image 4

SKU 1606-PIRMOTIONEAN 5410329557812

Description

The D203S PIR sensor module is a passive infrared motion detector designed for security, automation and home automation applications.

It detects changes in the infrared radiation emitted by moving bodies (people, for example), providing a digital TTL output (HIGH/LOW) that is easy to interface with microcontrollers and boards such as Arduino.

Thanks to its good sensitivity and wide detection angle, it is ideal for alarm systems, automatic lighting and low-power embedded projects.

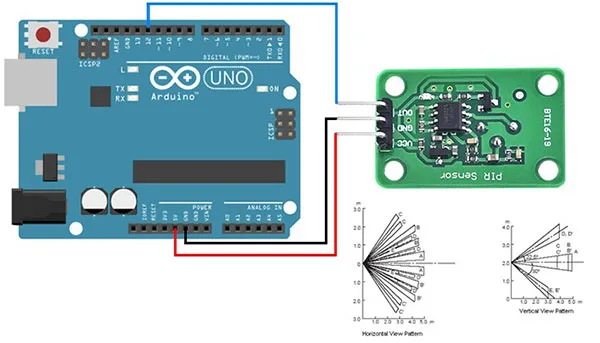

Wiring diagram of the PIR motion sensor with Arduino

Wiring diagram of the BTE16-19 PIR motion sensor with Arduino

Technical details

Built-in sensor D203S PIR (passive infrared)
Output digital (HIGH/LOW)
Detection angle 120°
Detection range up to 5 metres
Status indicator LED yes
Supply voltage 3.3 – 5 V
Sensor diameter 11.8 mm
Focal length 5 mm
Module dimensions 19 x 35 mm
