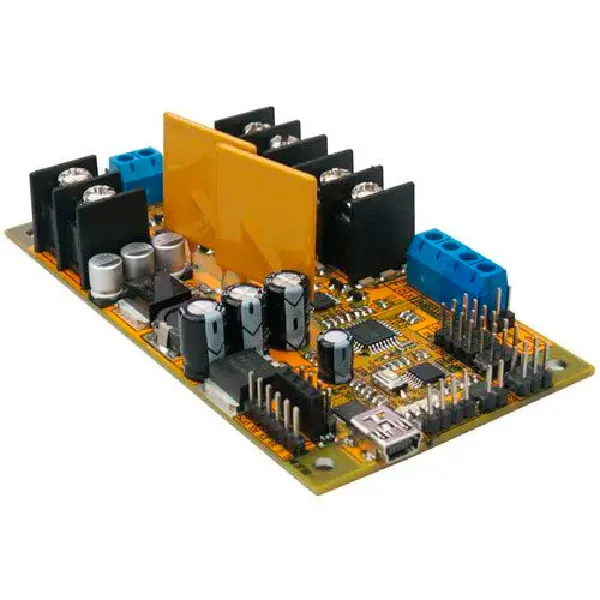

DAGU T’REX Driver board

Description

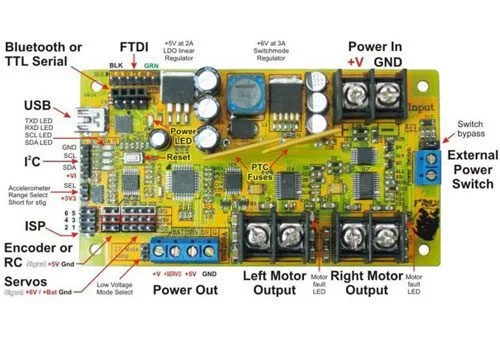

Based on the ATmega328P, the DAGU T’REX driver board is a board capable of controlling the speed and direction of rotation of two DC motors with a continuous current of 9A (40A peak) and 4 RC servos at 6V. Equipped with a 3-axis accelerometer and resettable fuses (PTC), it can be controlled in I2C, RC mode, and via the DAGU Bluetooth module (not included) which allows managing the driver with a smartphone. It also features a 5V 2A power output that can power a Raspberry Pi or other 32-bit controllers. The ATmega328P comes with a bootloader to upload your own sketch directly via USB, ISP, or FTDI interface. Dimensions (mm): 110x60x23. Particularly suitable for use with the T’REX TANK (not included).

Technical Specifications

• Power supply:
• +5V output: 2A continuous – 3A peak
• Dual H bridge
• Fuse resistance: 0.005 Ohm – 0.020 Ohm

• Accelerometer:
• Type: MMA7361L – Freescale Semiconductor
• Supply voltage: 3.3V
• Number of axes: 3
• Sensitivity: ±1.5g or ±6g
• Output: Analog

• USB Interface:
• Type: CP2102 – Silicon Labs
• Drivers (Windows, Macintosh and Linux): http://www.silabs.com/products/mcu/Pages/USBtoUARTBridgeVCPDrivers.aspx

Documentation and Useful Links

• Code
• Software
• I2C Example Code
