DC/DC Converter with display, 1.5-35 V output

Step-Down DC/DC Converter with Voltmeter

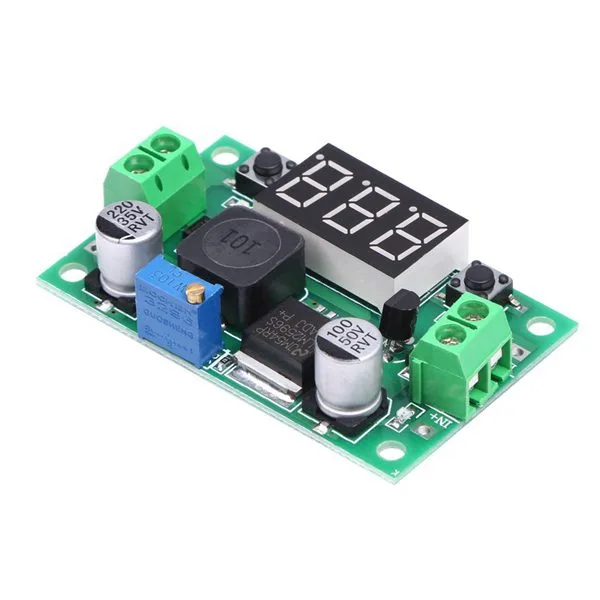

DC/DC Converter with display, 1.5-35 V output - Image 1

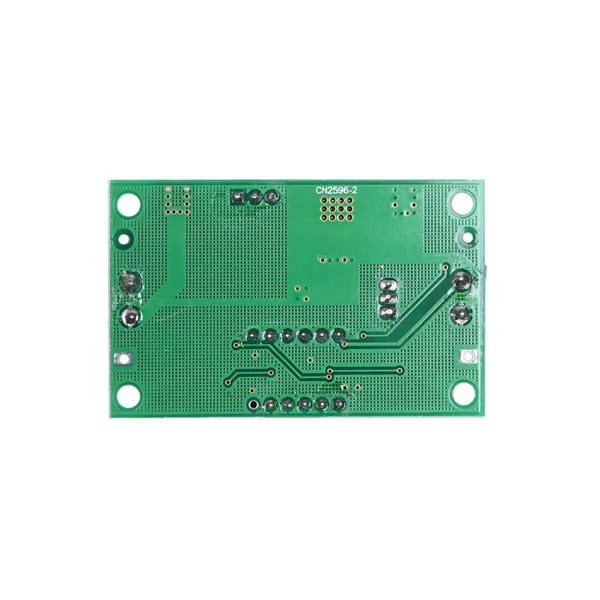

DC/DC Converter with display, 1.5-35 V output - Image 3

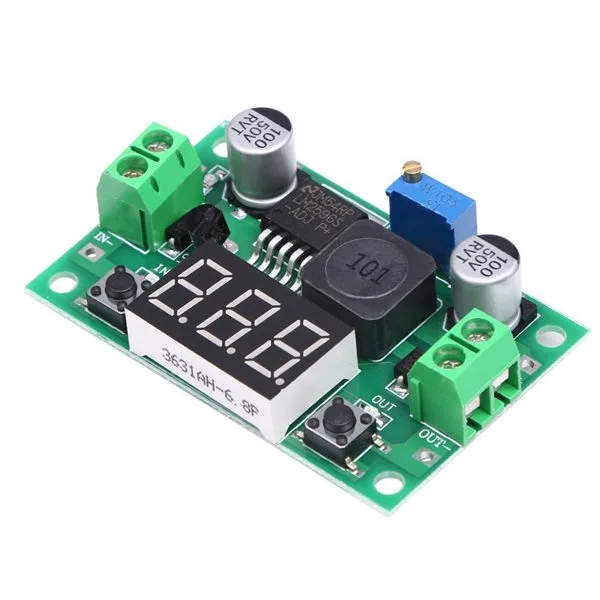

DC/DC Converter with display, 1.5-35 V output - Image 4

SKU 1606-STEPDOWNDISPEAN 8219671083218Output voltage: Manually adjustableItem type: AssembledConversion type: Step-down

Description

Step-Down DC/DC Converter with Voltmeter. Converts a DC input voltage between 4 and 40 volts into an output voltage from 1.25 to 37 volts (adjustable via trimmer). It has two status LEDs (input and output) and two buttons used to switch the display between input and output voltage and to turn the display on/off. The maximum available current is about 2 A.
Technical specifications
  • Output voltage (adjustable): from 1.25 Vdc to 37 Vdc (input voltage must be at least 1.5 V higher than output voltage)

Technical details

Input voltage from 4 Vdc to 40 Vdc
Output current 2 A
Voltmeter accuracy about 5%
Dimensions (mm) 56x35x13
