DC-DC STEP-UP Converter 12 V

DC/DC step-up converter with an extremely compact size (20.5x10.16x5.6 mm), able to convert a DC voltage between 3 and 6 volts into a fixed 12-volt output

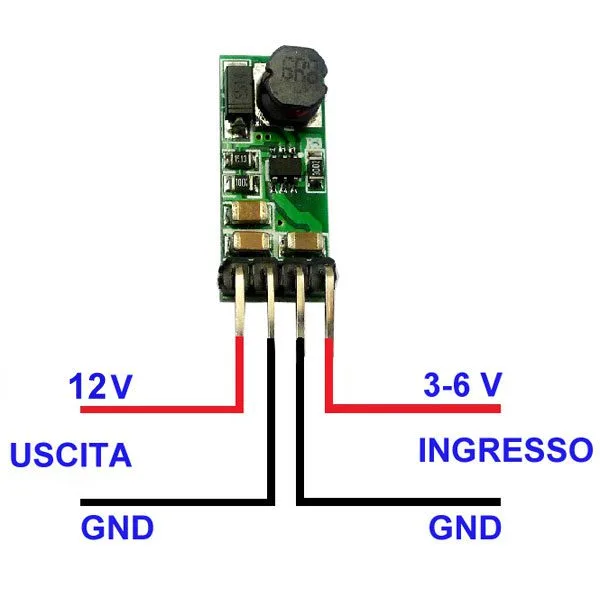

DC-DC STEP-UP Converter 12 V - Image 1

SKU 2846-DCDC12VEAN 8219671085168Output voltage: 12 VdcItem type: AssembledConversion type: Step-up

Description

DC/DC step-up converter with an extremely compact size (20.5×10.16×5.6 mm), able to convert a DC voltage between 3 and 5 volts into a fixed 12-volt output. Features over-temperature protection.
Technical specifications
  • Input/Output voltage (from 3 V to 6 V) and current:
    – Input 3 V 1 A – Output 12 V 220 mA
    – Input 3.3 V 1 A – Output 12 V 250 mA
    – Input 3.7 V 1 A – Output 12 V 280 mA
    – Input 4.5 V 1 A – Output 12 V 340 mA
    – Input 5 V 1 A – Output 12 V 370 mA

Technical details

Conversion efficiency 80-91%
Operating temperature from -40°C to +85°C
Dimensions (mm) 20.5x10.16x5.6
Weight 1.4 grams
