Dual power supply module IN 13-28V / OUT -5V and +5V

Step-Down switching DC/DC converter, with particularly compact dimensions (50x50x18 mm), able to convert an input voltage between 6 and 28 VDC into a dual output voltage (-5VDC and +5VDC)

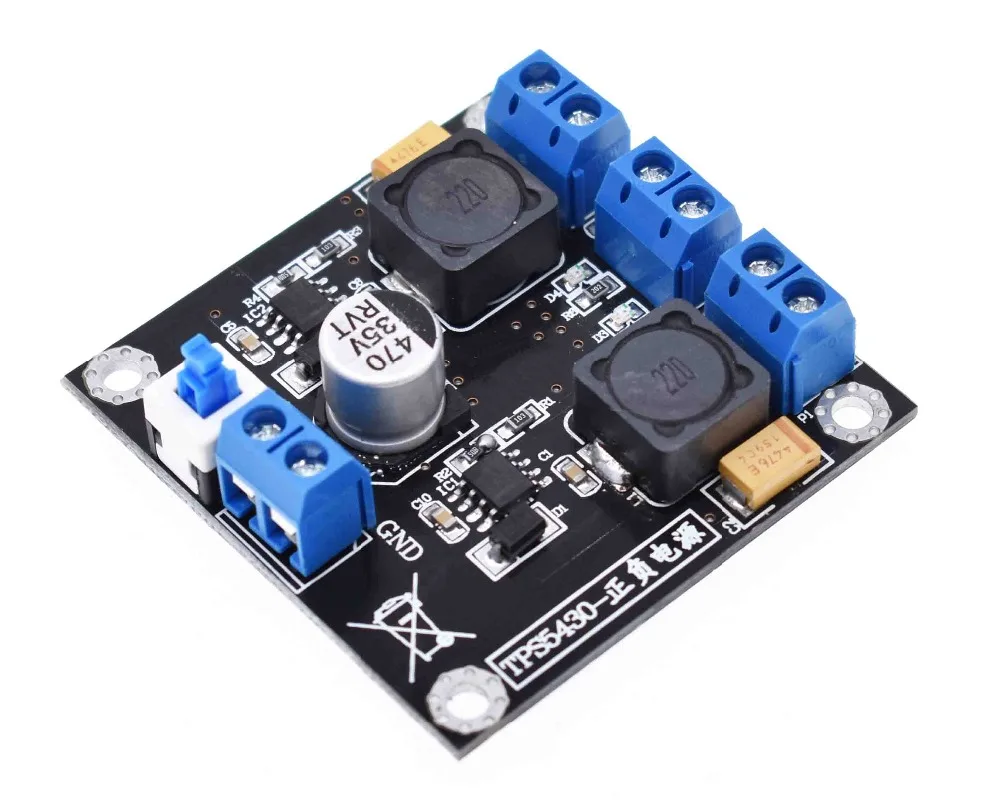

Dual power supply module IN 13-28V / OUT -5V and +5V - Image 1

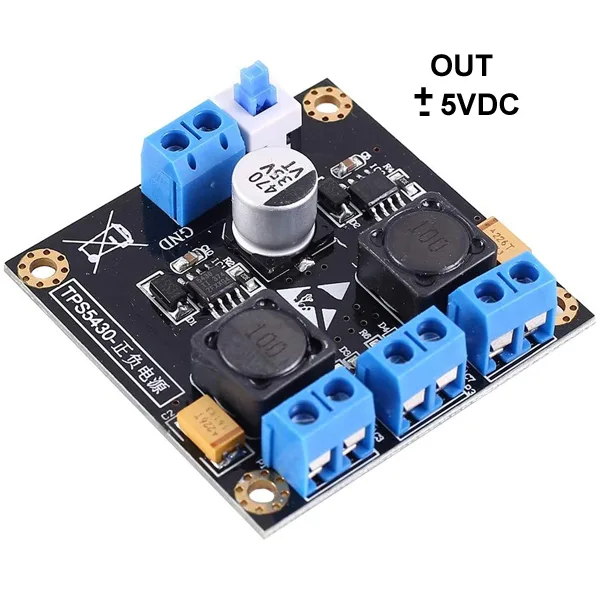

Dual power supply module IN 13-28V / OUT -5V and +5V - Image 3

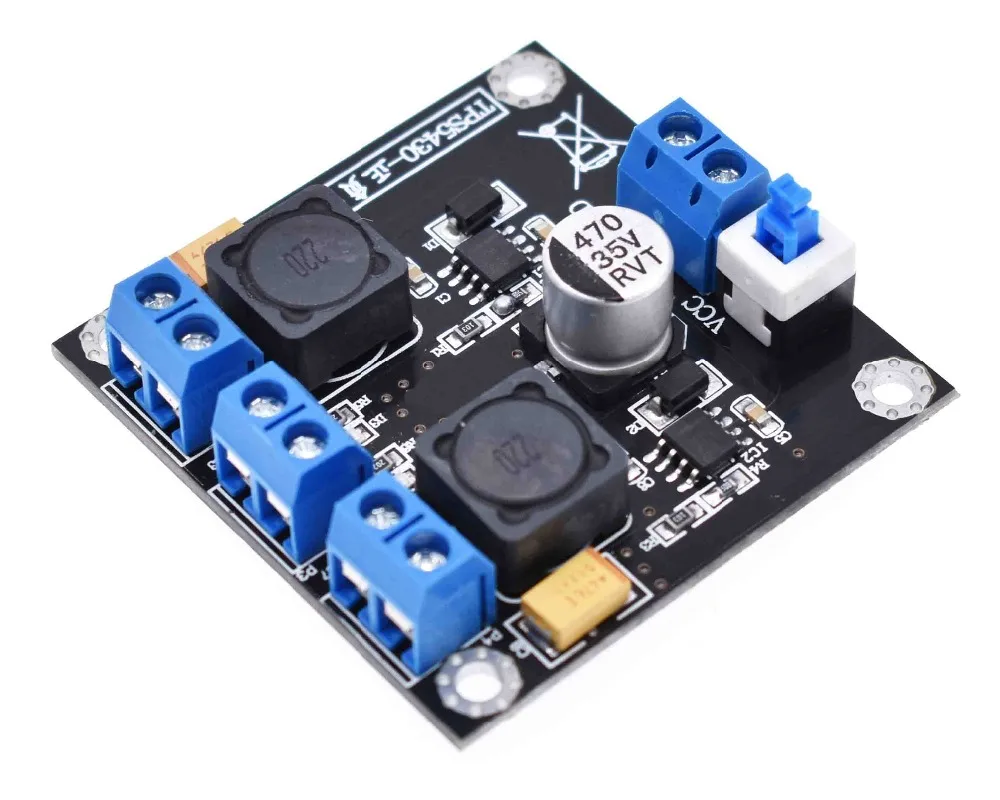

Dual power supply module IN 13-28V / OUT -5V and +5V - Image 4

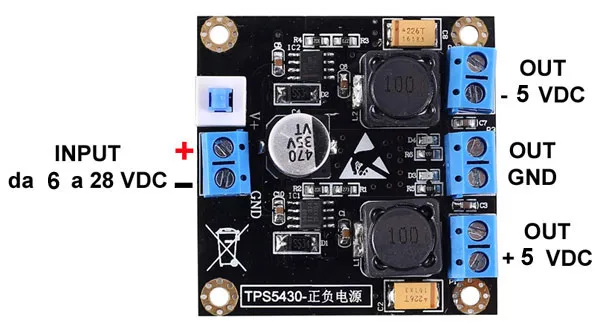

Dual power supply module IN 13-28V / OUT -5V and +5V - Image 5

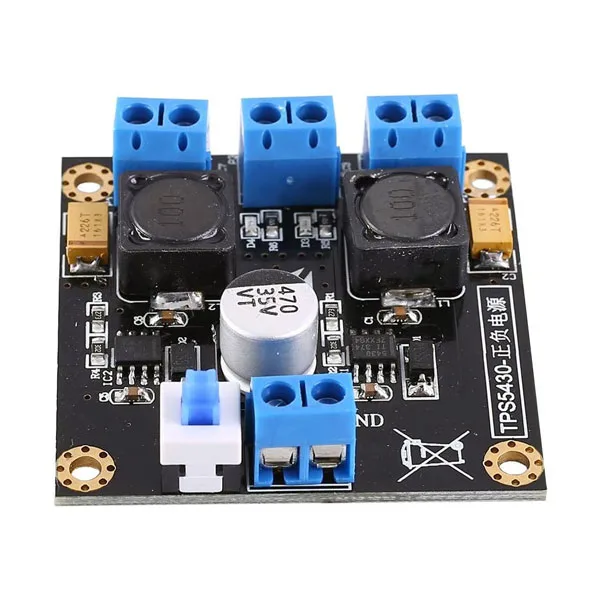

Dual power supply module IN 13-28V / OUT -5V and +5V - Image 6

SKU 2846-5VDUALMODEAN 8219671120029Output voltage: 5 VdcItem type: AssembledConversion type: Step-down

Description

Step-down switching DC/DC converter with particularly compact dimensions (50x50x18 mm), capable of converting an input voltage between 6 and 28 VDC into a dual output voltage (-5VDC and +5VDC). It features an on/off switch, status LED, screw terminals for input and output power, low ripple, low consumption, and high efficiency.

Technical specifications

Click on the image to enlarge

  • Output power: max. 30 watts (use a heat sink if the absorbed power is greater than 10 watts)

Technical details

Chip TPS5430
Input voltage 6 to 28 VDC
Output voltage -5VDC and +5VDC
Output ripple <80mV
Switching frequency 500 KHz
Stand-by consumption 10 mA
Conversion efficiency >88%
Operating temperature -20℃ ~ 85℃
Operating humidity 5% ~ 95% RH
Dimensions (mm) 50x50x18
