DC/DC Step-Up Converter with 12V-130V Output, 900W

Powerful DC/DC step-up converter capable of converting an input DC voltage between 8 and 60 volts into an output voltage of 12 to 130 volts, with a maximum current of about 10 A (15 A peak)

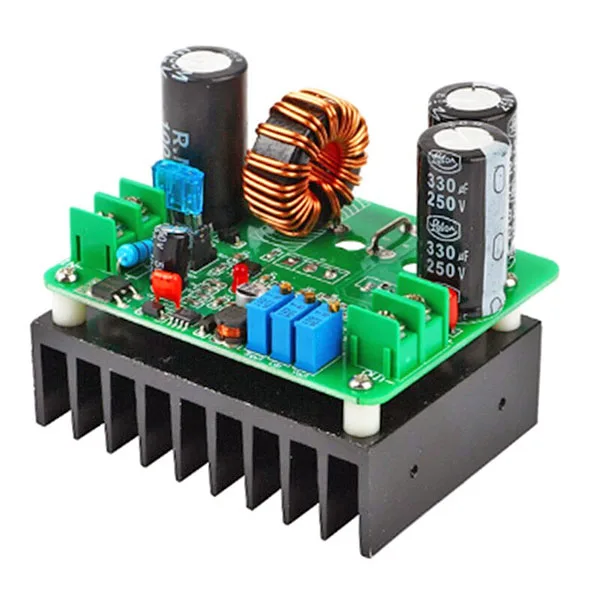

DC/DC Step-Up Converter with 12V-130V Output, 900W - Image 1

SKU 2846-900WDCDCEAN 8219671117364Output voltage: Manually adjustableItem type: AssembledConversion type: Step-up

Description

Powerful DC/DC step-up converter capable of converting a continuous input voltage between 8 and 60 volts into an output voltage from 12 to 130 volts with a maximum current of about 10 A (15 A peak). It features short-circuit protection, heat sink, and trimmers for adjusting output voltage, input current, and load disconnect voltage.

Note: not suitable for inductive loads. The product only works as a voltage step-up (Step-Up), so if powered at, for example, 16V, you can get 30V output, but not the reverse.

Technical specifications

  • Input voltage: from 8 to 30 volts / from 30 to 60 volts (selectable via jumper)

Technical details

Input current 10 A continuous, 15 A peak
Adjustable output voltage from 12 to 130 volts
Output power max. 900 watts
Conversion efficiency about 85%
Output ripple less than 50 mV
Short-circuit protection 15 A fuse
Cooling aluminum heat sink
Connection mode screw terminal block
Dimensions (mm) 85x69.9x70.7
Weight 250 grams
