DC motor speed controller 10-40 VOLT 10A

Compact board that lets you adjust the speed of a DC motor running from 10 V to 40 V and drawing up to 10 A, using a potentiometer

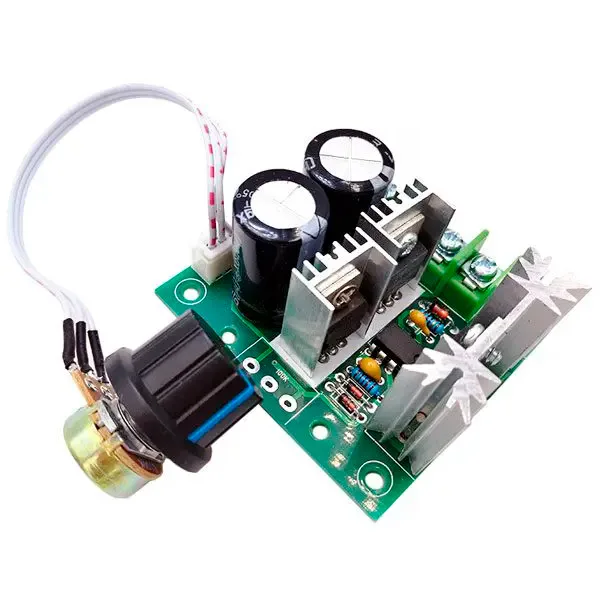

DC motor speed controller 10-40 VOLT 10A - Image 1

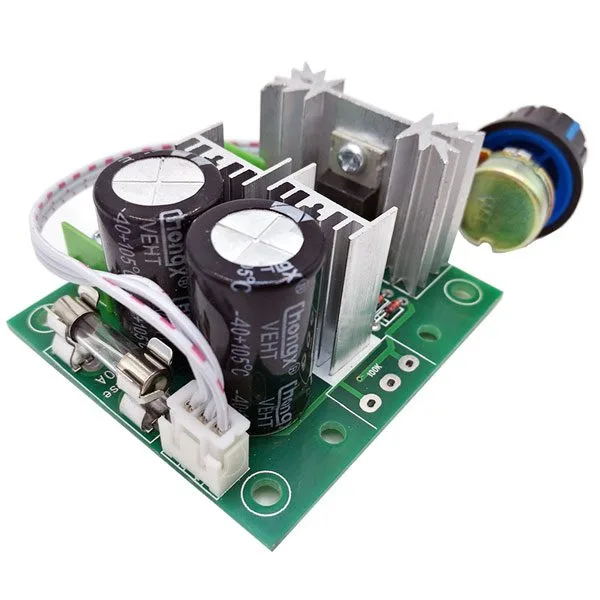

DC motor speed controller 10-40 VOLT 10A - Image 3

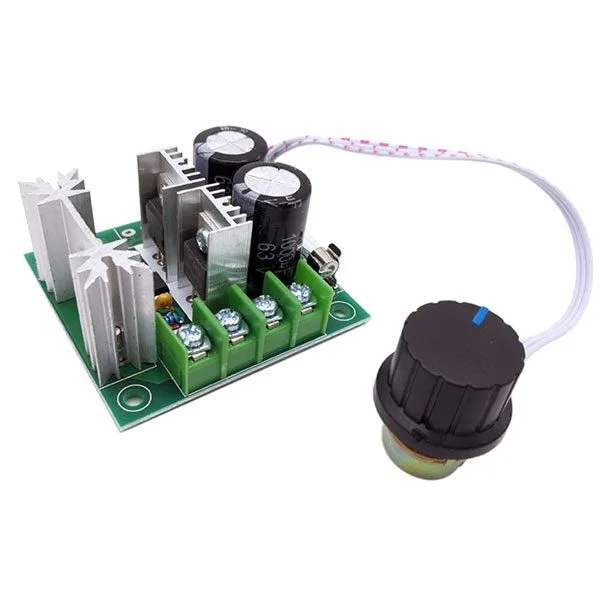

DC motor speed controller 10-40 VOLT 10A - Image 4

SKU 2846-CVMDC10AEAN 8219671112789Item type: Assembled

Description

Compact board for adjusting the speed of a DC motor, with a supply voltage between 10 V and 40 V and a maximum current of 10 A, via a potentiometer. It features a screw terminal for power and motor, a 10 A protection fuse, and a potentiometer with knob. Dimensions (mm): 60x55x30.

Technical details

Dimensions (mm) 60x55x30
Board and motor supply from 10 VDC to 40 VDC
Motor current 10 A
Motor power max 400 watts
Frequency 13 kHz
Speed adjustment from 10% to 100%
Weight 70 g
