DC motor speed controller 3 to 35 V 5A

Compact little board that lets you adjust the speed of a DC motor, with a supply between 3 V and 35 V and a maximum current of 5 A, through a potentiometer with an on/off switch.

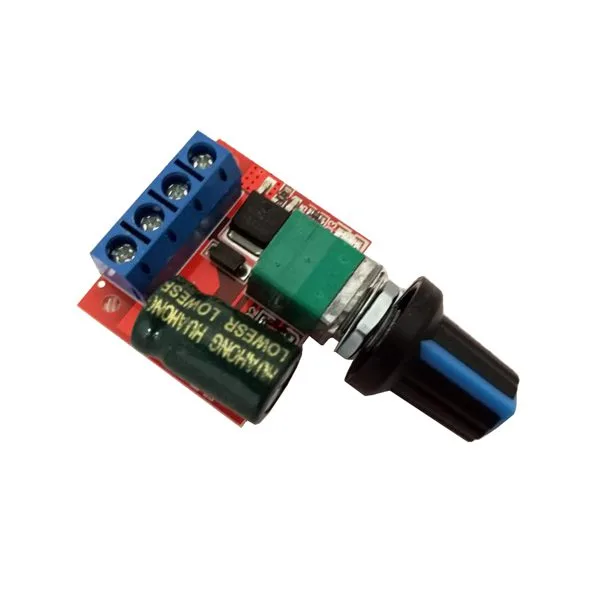

DC motor speed controller 3 to 35 V 5A - Image 1

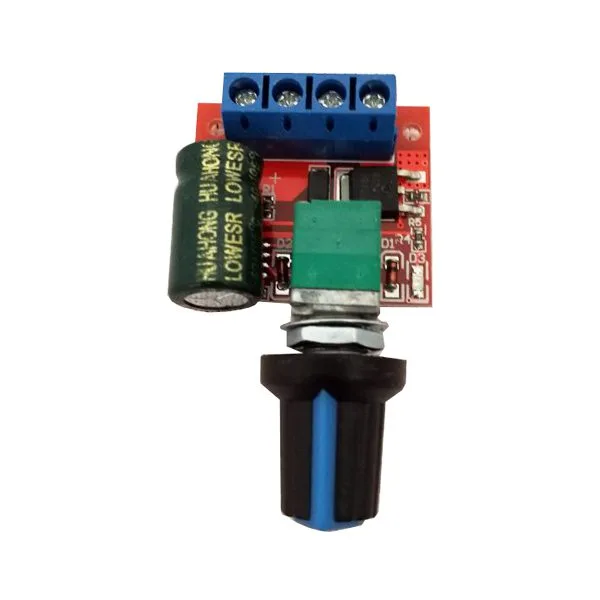

DC motor speed controller 3 to 35 V 5A - Image 3

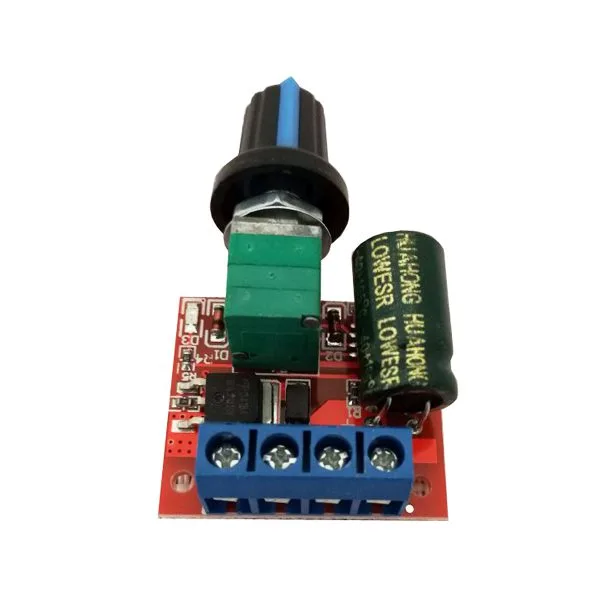

DC motor speed controller 3 to 35 V 5A - Image 4

SKU 2846-5ASPEEDMOTDCEAN 8219671078061Item type: Assembled

Description

Compact board that lets you adjust the speed of a DC motor, with a supply voltage between 3 V and 35 V and a maximum current of 5 A, via a potentiometer with an on/off switch.

Technical details

Board and motor supply voltage from 3 Vdc to 35 Vdc
Motor current 5 A
Motor power max 90 watts
Frequency 10 kHz
Speed adjustment from 1-100%
Dimensions (mm) 30x24x15
Weight 15 g
