Digital Temperature Sensor – LMT01

2-pin digital temperature sensor (TO-92 case) from Texas Instruments

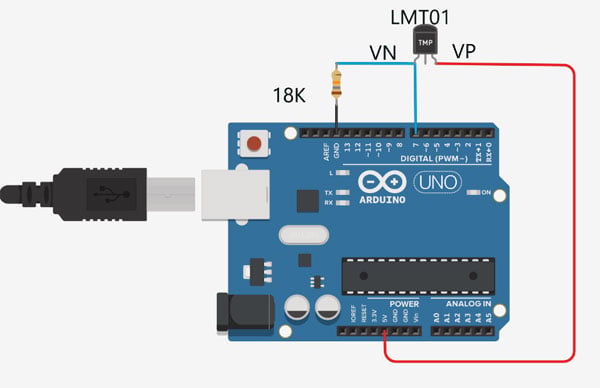

Digital Temperature Sensor - LMT01 - Image 1

SKU 6630-LMT01LPGMEAN 8219671113991Item type: Assembled

Description

2-pin digital temperature sensor (TO-92 case) from Texas Instruments. It can detect temperatures between -50°C and +150°C with an accuracy of +/- 0.7°C. It outputs a pulse train from 34 µA (low level) to 125 µA (high level), converted via a 10 kohm resistor into a voltage pulse train between 340 mV and 1.25 volts. Suitable for applications such as: digital thermometers, environmental control systems, thermal protection, fire alarms, etc.
Technical specifications
  • Accuracy:
  • – from +50°C to –20°C: ±0.7°C
Documentation and useful links

Technical details

Temperature range from -50°C to +150°C
from +20°C to +90°C ±0.5°C
from +90°C to +150°C ±0.625°C
Case TO-92
Number of pins 2
