Driver for 2 DC motors, 10 A – 4 control modes

Description

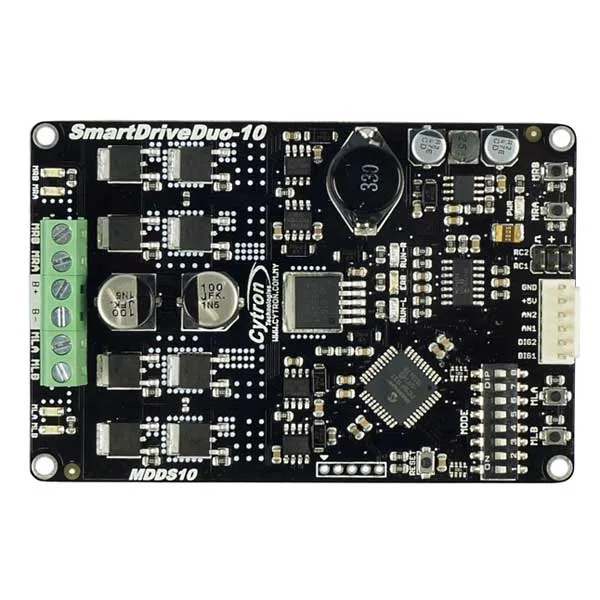

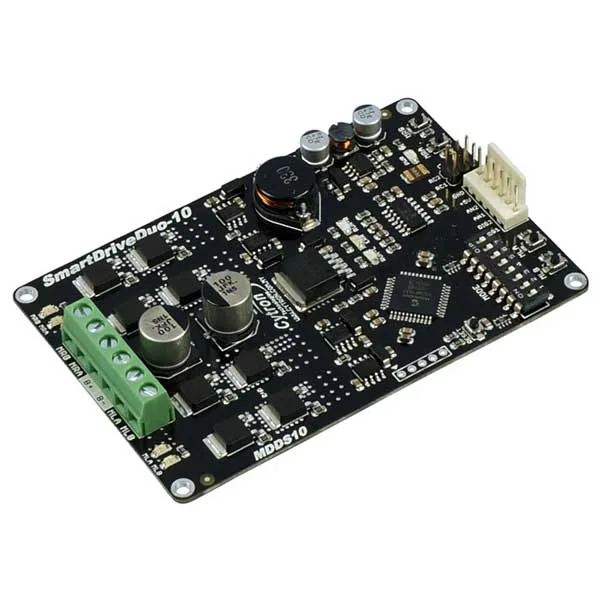

Compact power driver capable of handling 2 DC motors with a supply voltage between 7 Vdc and 35 Vdc and a max current of 10 A per channel. It can be controlled in RC mode (model receiver), Analog, PWM from a microcontroller (Arduino or other), and UART. It features a terminal block for motor and power connections, two test buttons per channel, inputs for external control, and status LEDs for Power, Error, and Running state (left and right channel). Particularly suitable for robotics, automation, model making, etc.

Uses

Technical specifications

• Maximum current: up to 10 A continuous at room temperature (30 A peak for max. 1 second)
• Two test buttons per channel
• Two output LED indicators per channel
• Status LEDs for Power, Error, Running state (left and right channel)
• Reset button to restart the microcontroller after changing the operating mode.

Documentation and useful links

• Simple Mobile Robot – Plug and play Joystick + MDDS10
• Arduino + PS2 shield + MDDS10 for mobile robot control
• Improve MDDS10 Performance With External Fan
• PWM from CT-UNO+ MDDS10
