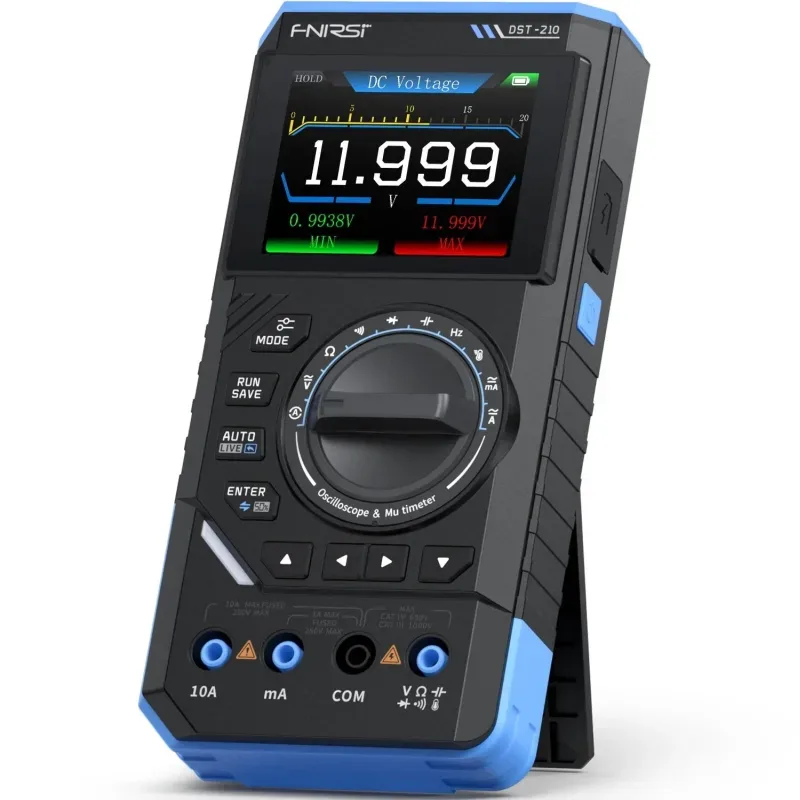

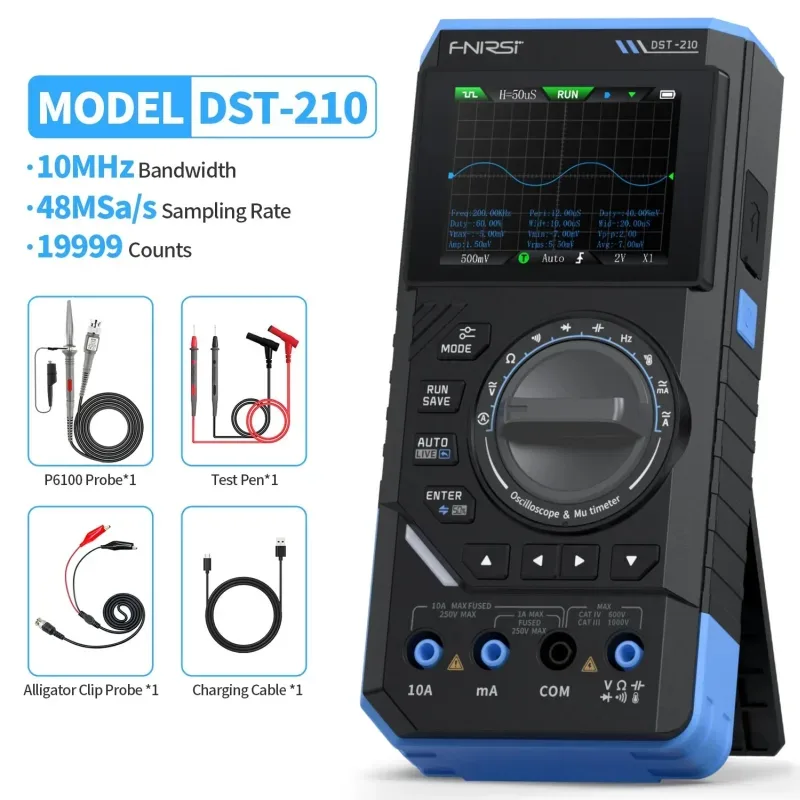

DST210 3-in-1 Handheld Multimeter, Oscilloscope and Signal Generator

Description

The DST210 is a handheld instrument built for people who work with electronics every day and need something compact but complete. It brings three essential instruments together in one body: a true RMS multimeter, a 10 MHz oscilloscope and a signal generator. That makes it particularly useful for professionals as well as for makers and R&D labs looking for convenience and versatility without giving up accuracy.

True RMS multimeter

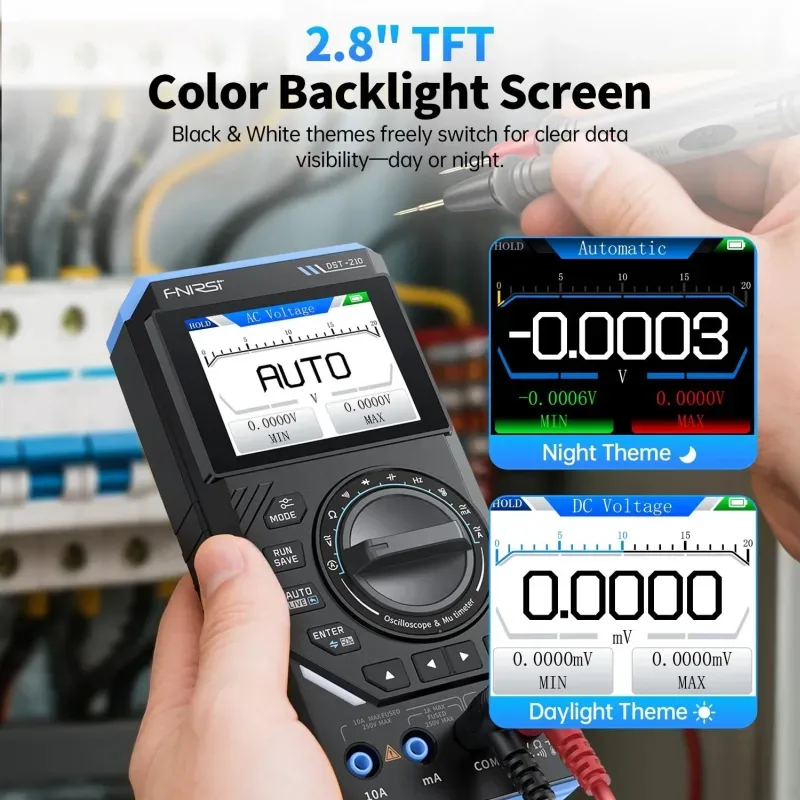

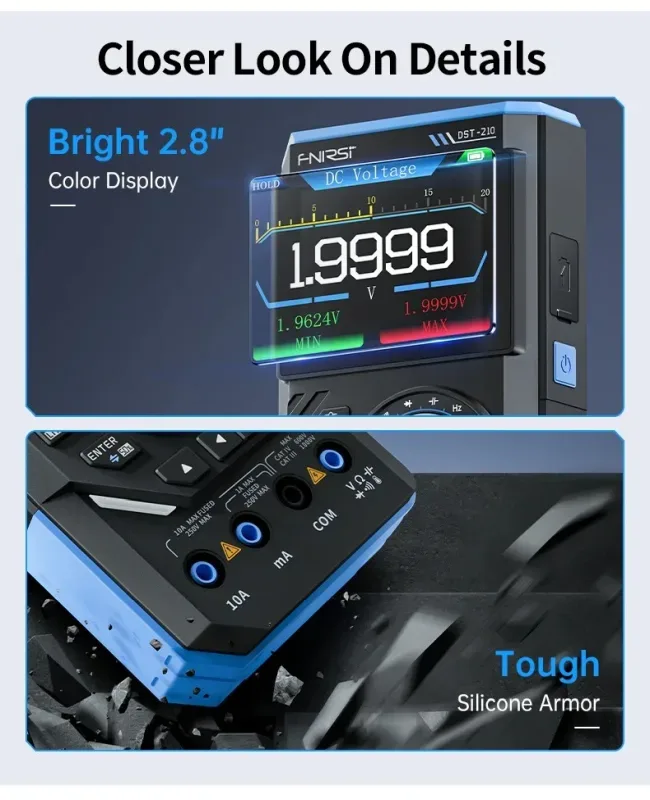

The multimeter section covers all the essential measurements: AC/DC voltage and current, resistance, capacitance, frequency, temperature and diode/continuity testing. The 4.5-digit display is clear and easy to read, and functions such as Data Hold and data logging make work in the field easier. It is the classic “always ready” instrument for a quick, dependable diagnosis.

10 MHz oscilloscope with 48 MSa/s sampling

Oscilloscope mode offers bandwidth up to 10 MHz with a sampling rate of 48 MSa/s, ample for looking comfortably at analogue, digital and switching signals. The selectable 1:1 / 10:1 probe, automatic or manual triggering and the instant readout of values (RMS, Vpp, period, frequency, duty cycle) make the DST210 useful for more advanced debugging too.

Built-in signal generator

The generator produces a range of waveforms (up to 13), at frequencies up to about 50 kHz and with an amplitude adjustable up to about 3 V. Perfect for testing digital modules, small amplifiers and logic circuits, or for simulating signals during maintenance.

Multimeter, oscilloscope and generator: everything in one instrument

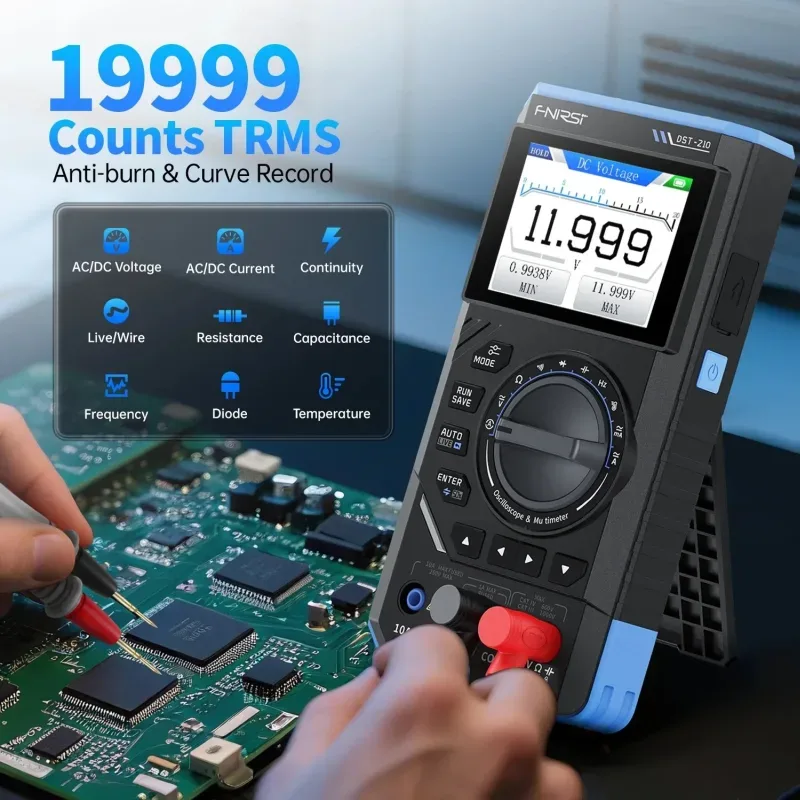

High-accuracy True RMS measurement up to 19,999 counts

The DST210 offers TRMS measurement at 19,999 counts with a complete set of functions: AC/DC voltage and current, continuity, resistance, capacitance, frequency, diode test, temperature and Live/Wire detection.
The anti-burn system and waveform logging give you safety and in-depth analysis at every stage of the job.

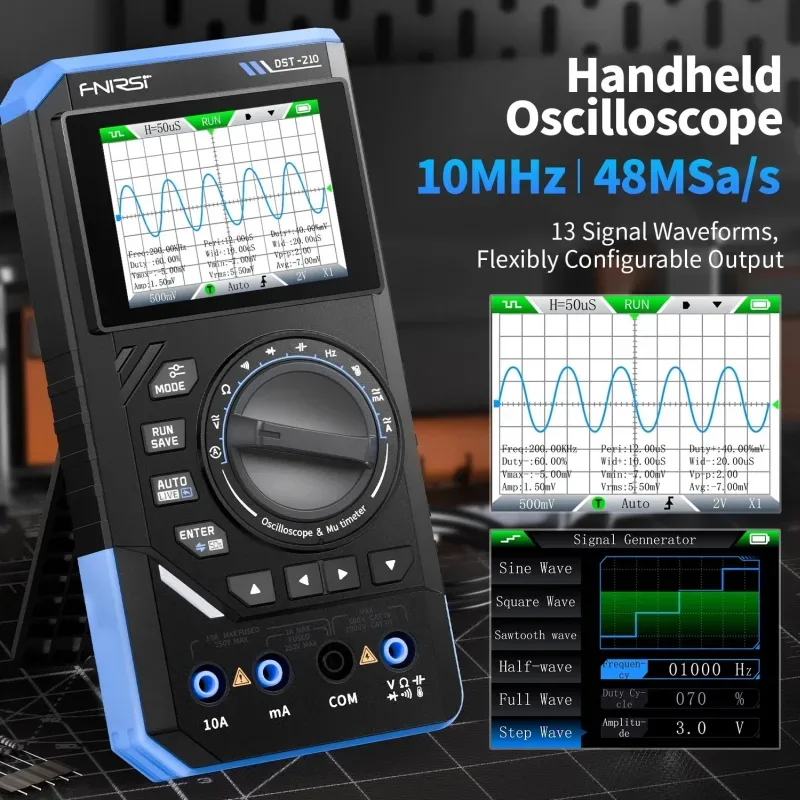

10 MHz handheld oscilloscope with 48 MSa/s sampling

The DST210 offers 10 MHz of bandwidth with 48 MSa/s sampling, ideal for quick analysis of digital and analogue signals.
The built-in generator lets you select up to 13 adjustable waveforms, making it easier to test circuits, logic modules and systems under development.
One handheld solution to measure and generate signals accurately.

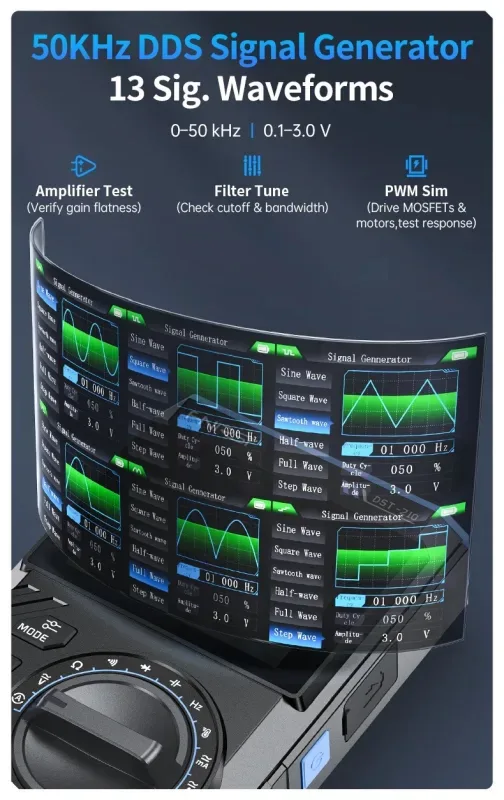

DDS generator up to 50 kHz with 13 selectable waveforms

The built-in DDS generator offers up to 13 adjustable waveforms between 0 and 50 kHz, with amplitude variable from 0.1 to 3 V.
A versatile way to test amplifiers, tune filters and simulate PWM signals on motors and MOSFETs, which makes the DST210 just as suited to advanced debugging and experimentation.

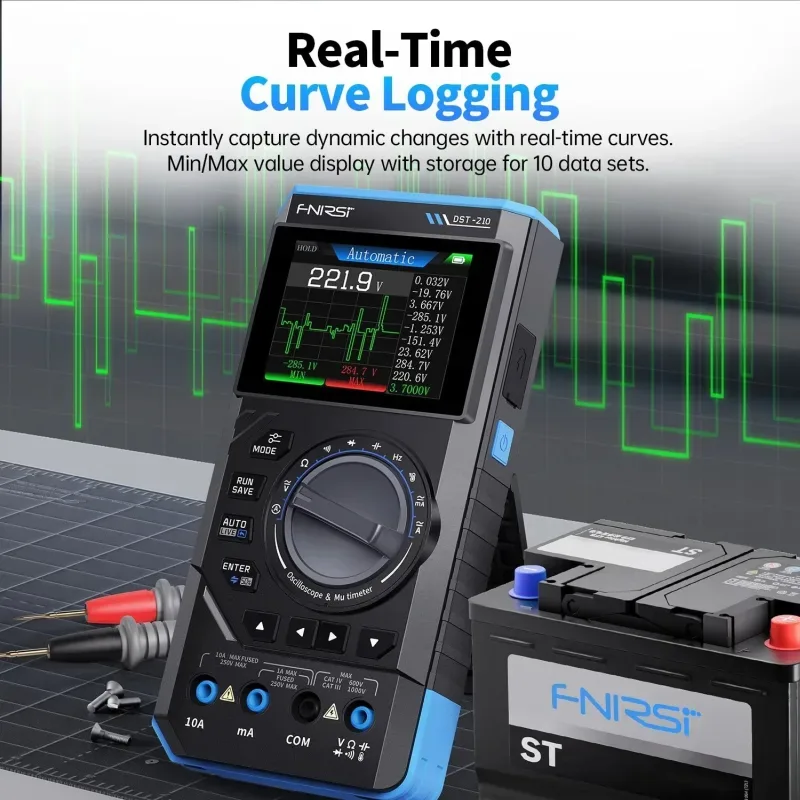

Real-time waveform logging for dynamic analysis

The data logger function lets you watch the signal change in real time, showing up peaks, dips and oscillations at a glance.
Min/Max values and the ability to save up to 10 data sets allow thorough analysis and accurate comparison of your measurements.

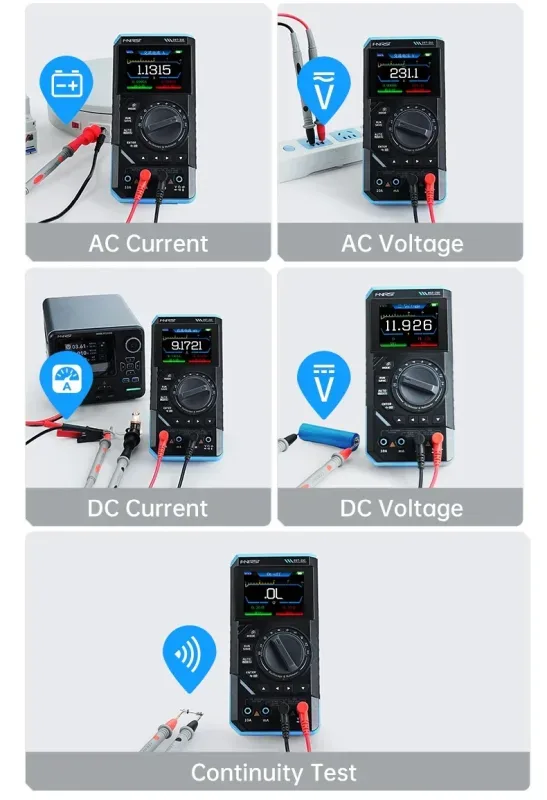

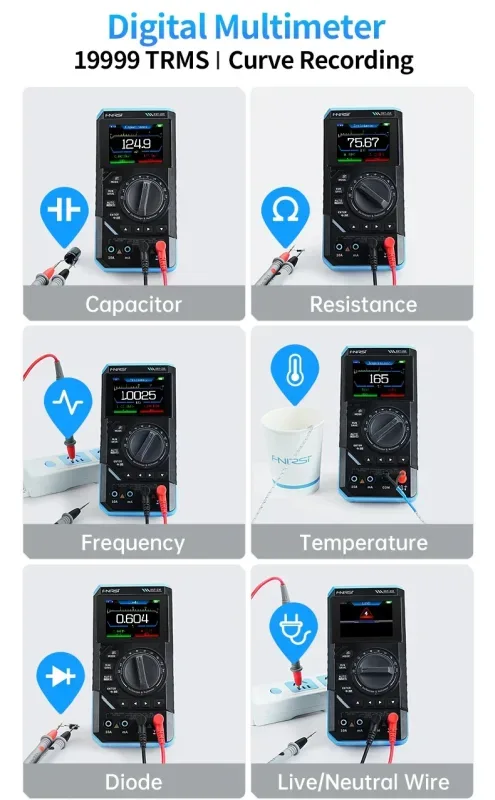

Every essential measurement always to hand

The DST210 covers every core function of a professional multimeter: it measures AC/DC current and voltage, and checks continuity, capacitance, resistance, frequency, temperature, diodes and Live/Neutral line presence.
A complete instrument for tackling any electrical or electronic test quickly and accurately.

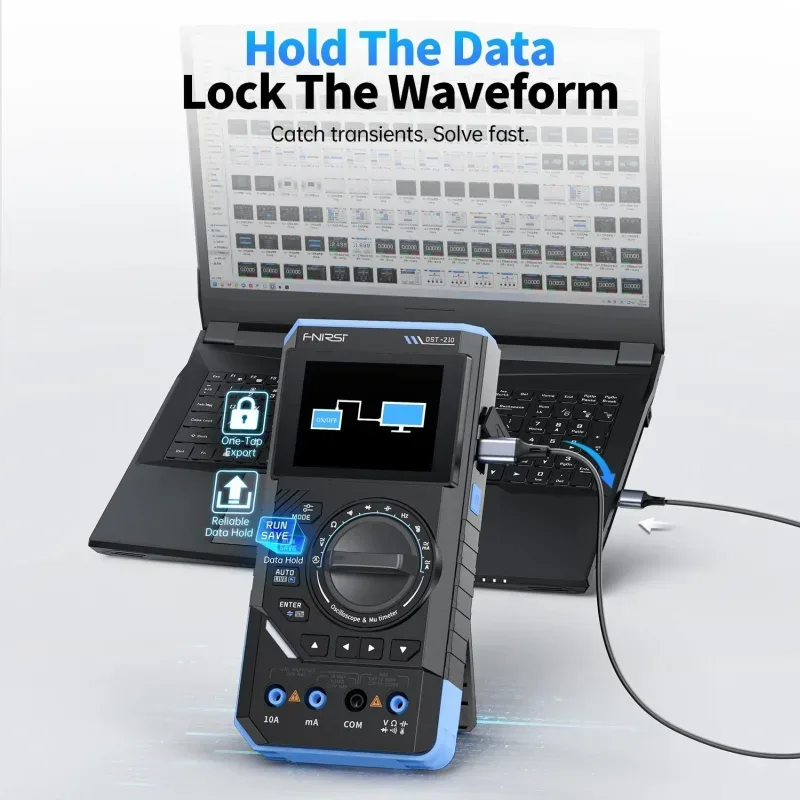

Precise analysis with Data Hold and quick export to PC

The Data Hold function freezes the waveform instantly so you can examine peaks and transients accurately.
Logged data can be exported quickly to a PC, which helps with diagnosis, documentation and comparing measurements over time.

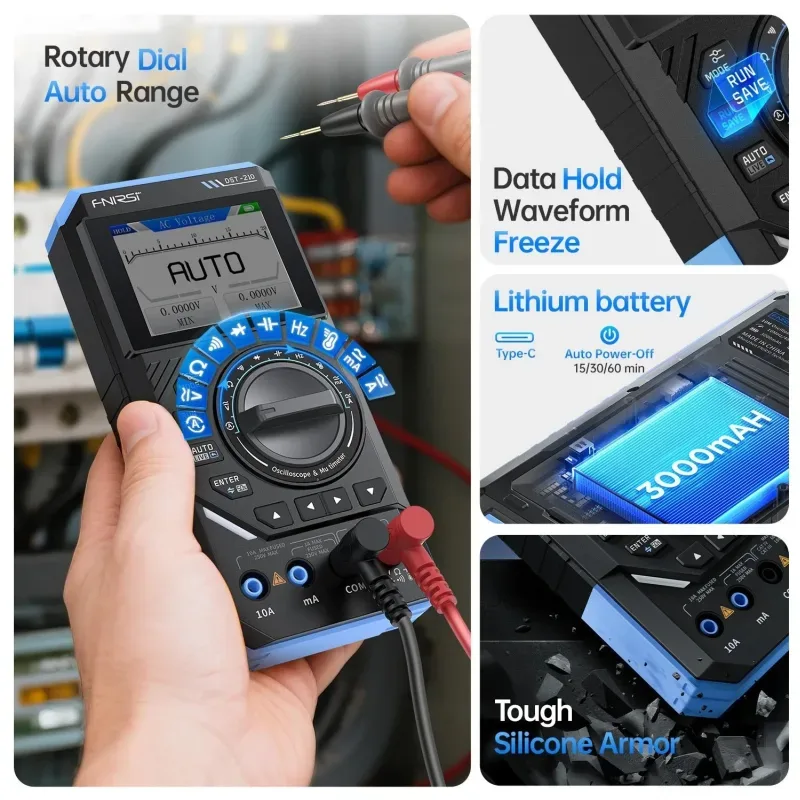

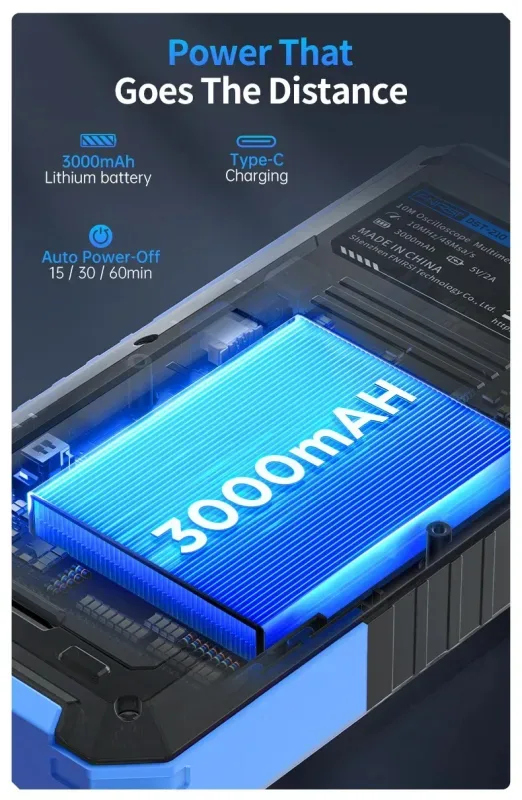

3000 mAh battery for longer running time

The DST210 has a built-in 3000 mAh battery that keeps it running through long test sessions.
USB-C charging is convenient and universal, while the selectable auto power-off (15/30/60 minutes) cuts consumption and extends operating life.

Track down voltage dips and dropouts fast

The DST210 catches faults an ordinary multimeter cannot see, such as voltage dips during start-up, sluggish relay response or micro-breaks in wiring.
Thanks to waveform logging you can pin down intermittent faults and find the real cause even in the hardest cases to diagnose.

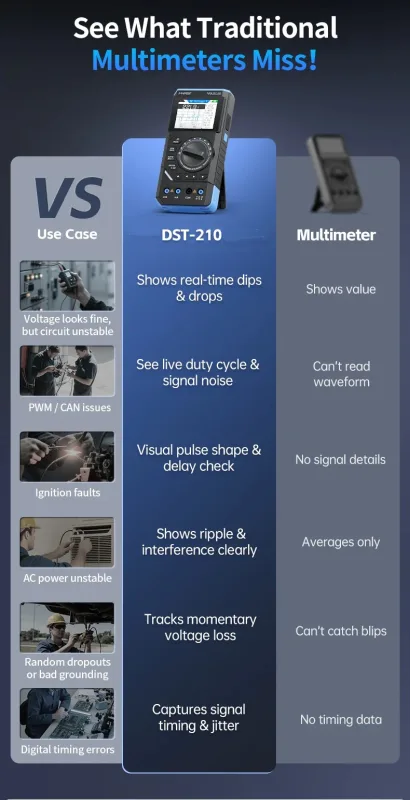

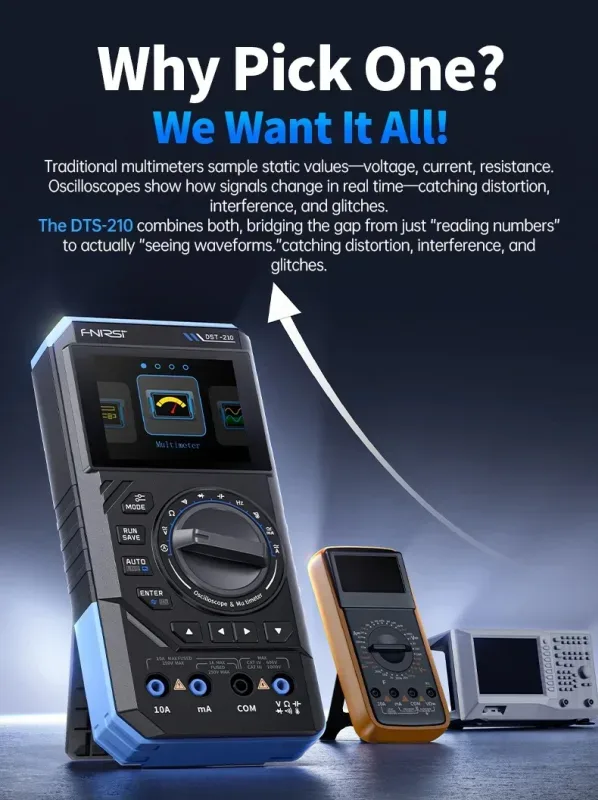

When a multimeter is not enough: full signal analysis

The DST210 finds problems that slip past traditional multimeters: voltage drops, PWM disturbance, signal noise, distorted waveforms and micro-breaks.
With live display and signal logging you can examine delays, ripple, timing and jitter, for an accurate diagnosis even in the most critical systems.
