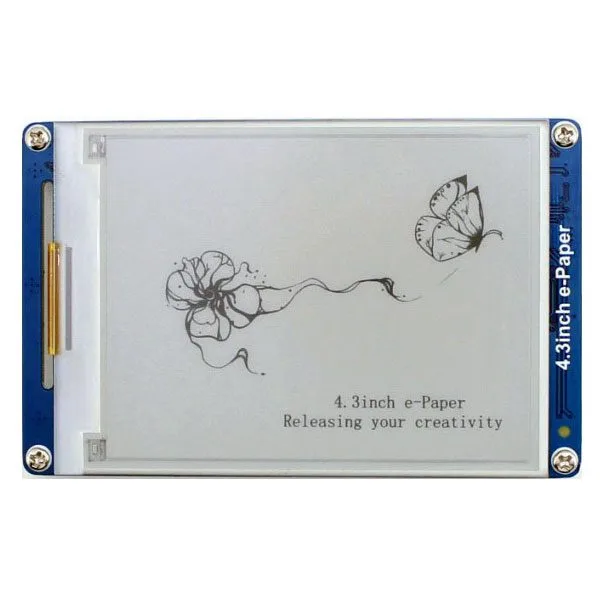

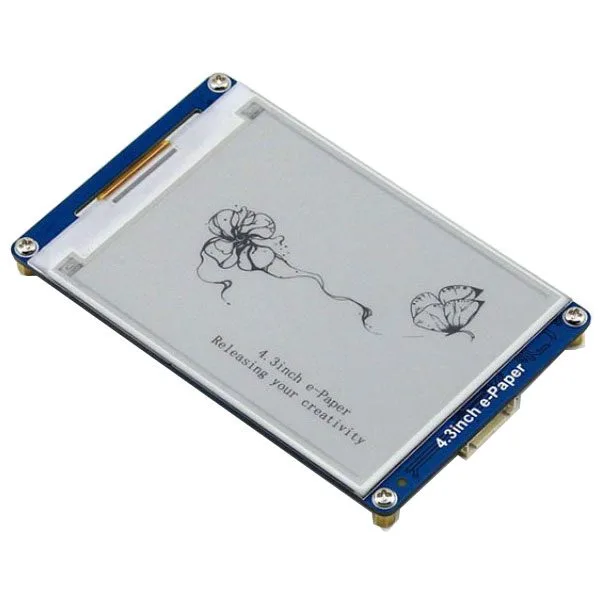

EPAPERUART 4.3 inch e-Paper module 800×600
4.3 inch e-Paper or Paper Ink (electrophoretic) display with a resolution of 800 (H) x 600 (V) pixels
SKU 2850-EPAPERUART43EAN 8219671090568Item type: Assembled, Shields & add-onsArduino, Arduino compatible, Displays
Description

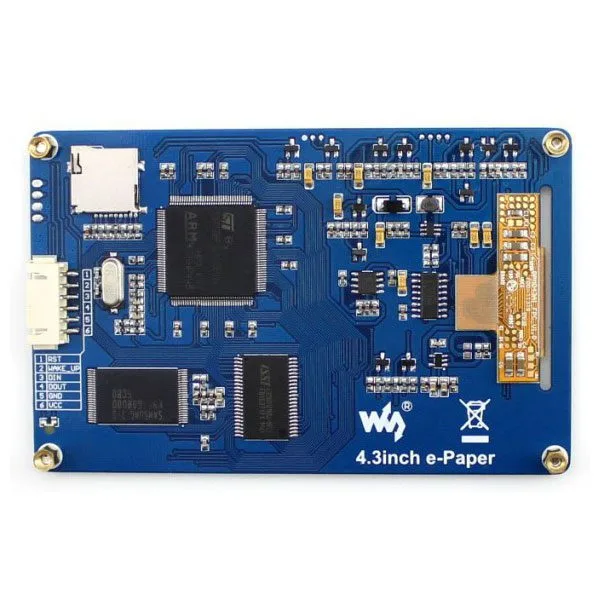

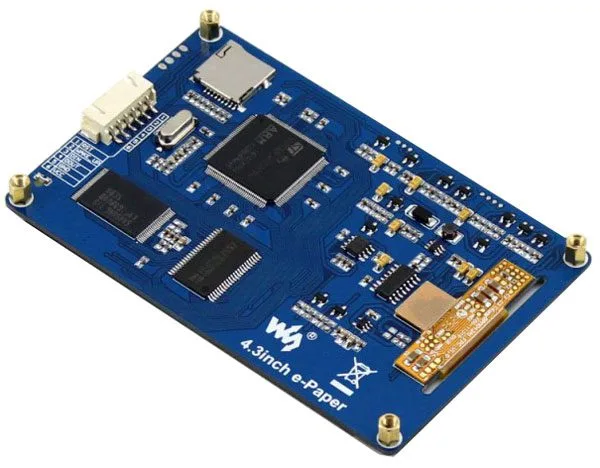

| Display e-Paper or Paper Ink (electrophoretic) 4.3 inch, with a resolution of 800 (H) x 600 (V) pixels. It has 128MB of NandFlash with built-in font libraries, a micro SD Card slot, 4 grey levels, high contrast, a wide viewing angle (>170°) and an SPI interface with settable baud rate (default at power-up 115,200) for use with controllers such as Arduino / Nucleo and the like. Very low consumption, anti-glare surface and a sleep mode for low current draw. The micro SD Card slot lets you load your own fonts or bitmap images (using the dedicated software – see the WiKi page at the bottom of this page). You do not need to know any specific algorithm to display graphics, text and images: all you need is the serial interface (see related products) and your own creativity. |
| Documentation and useful links |
Technical details
| Background colour | white |
|---|---|
| Text colour | black |
| Grey levels | 4 |
| Display resolution | 800 (H) x 600 (V) Pixel |
| Screen size | 4.3" |
| Viewing angle | >170° |
| Interface | SPI with settable baud rate (default at power-up 115,200) |
| Supply voltage | from 3.3 V to 5 V |
| Sleep consumption | < 5 mA |

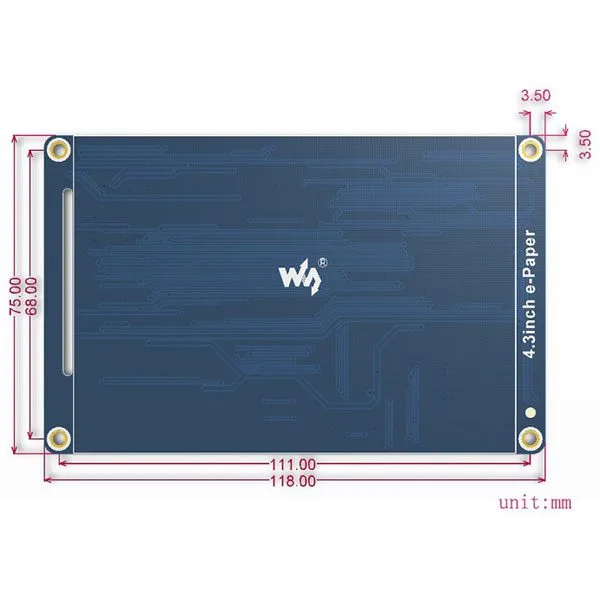

| Dimensions (mm) | 118x75x3 |
| Weight | 73 grams |
