ESP32-C6-Zero Wi-Fi 6 IoT Development Kit

Description

The ESP32-C6-Zero development kit is a complete platform for prototyping embedded systems and IoT applications, built around the ESP32-C6 microcontroller, ESP32-C6FH8 version, with a 32 bit RISC-V architecture. The board carries a high-performance core running at up to 160 MHz and a low-power coprocessor running at up to 20 MHz, with 8 MB of Flash, 512 KB of SRAM and dedicated LP memory for energy-efficient applications.

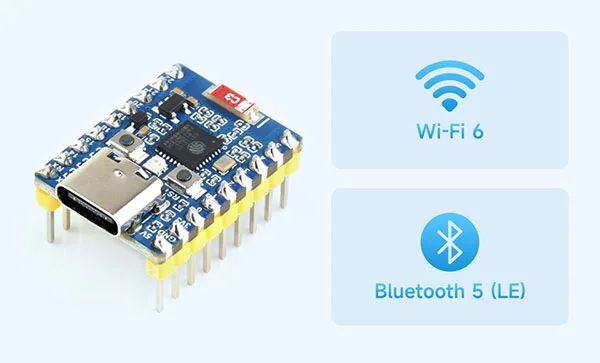

Support for Wi-Fi 6, Bluetooth Low Energy and the 802.15.4 protocols (Zigbee / Thread) makes it suitable for next-generation IoT scenarios and connected smart devices. The ESP32-C6-Zero-M board comes with pre-soldered headers and it comes with a set of accessories for electronics experiments, including a breadboard, wiring, a 1.5” OLED display, a WS2812 RGB LED, discrete LEDs, push-buttons, a potentiometer, resistors and a buzzer module.

The kit works with ESP-IDF, Arduino IDE e MicroPython, and it makes embedded application development quick thanks to worked examples, wiring diagrams and teaching material.

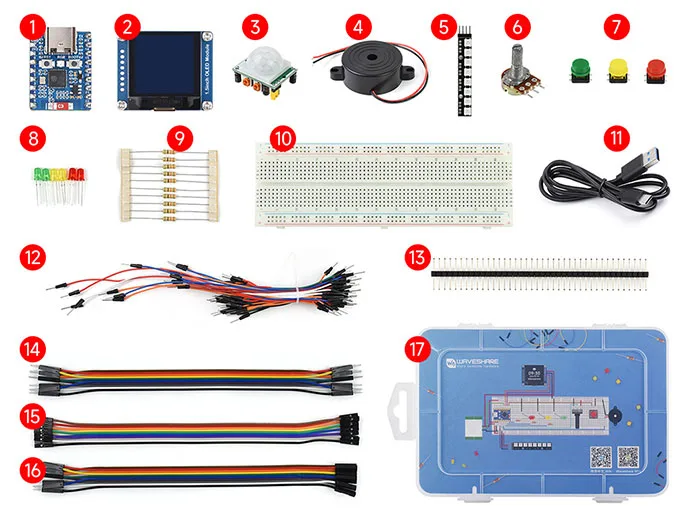

What the kit includes

1. ESP32-C6-Zero x1
2. 1.5” OLED module x1
3. PIR motion sensor x1
4. Alarm / buzzer x1
5. 8 bit WS2812 RGB LED x1
6. Single-turn potentiometer x1
7. Round push-button (3 pcs) x1
8. 5 mm LED (3 pcs) x1
9. 330Ω resistors x10
10. Breadboard (prototyping board) x1
11. USB Type-A to Type-C cable ~1 m x1
12. Breadboard wires x1
13. Straight header, 40 pin x1
14. Jumper wires, 2.54 mm pitch, male-male, 10 pin, ~200 mm x1
15. Jumper wires, 2.54 mm pitch, female-female, 10 pin, ~200 mm x1
16. Jumper wires, 2.54 mm pitch, male-female, 10 pin, ~200 mm x1

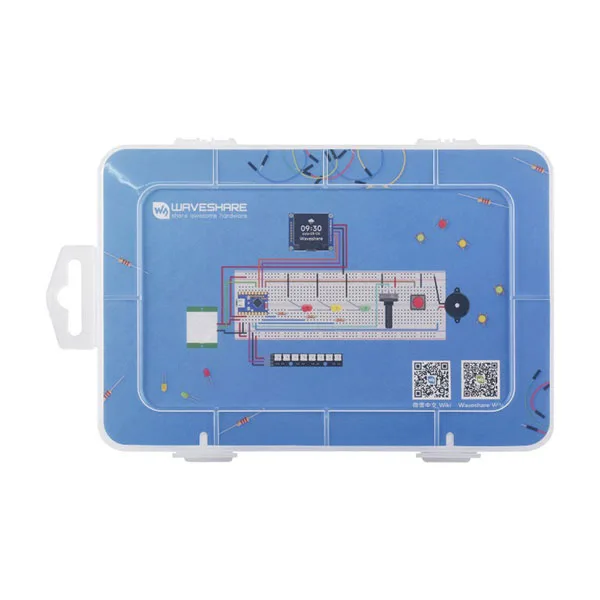

17. Plastic storage box x1

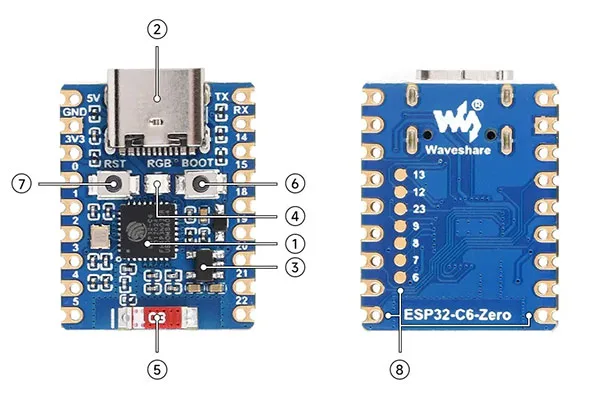

An overview of the ESP32-C6-Zero board

1. 2.4G ceramic antenna
2. Pulsante BOOT: hold this button down and press RESET to enter programming mode

IMPORTANT! The ESP32-C6-Zero-M board comes with pre-soldered headers

The ESP32-C6-Zero board

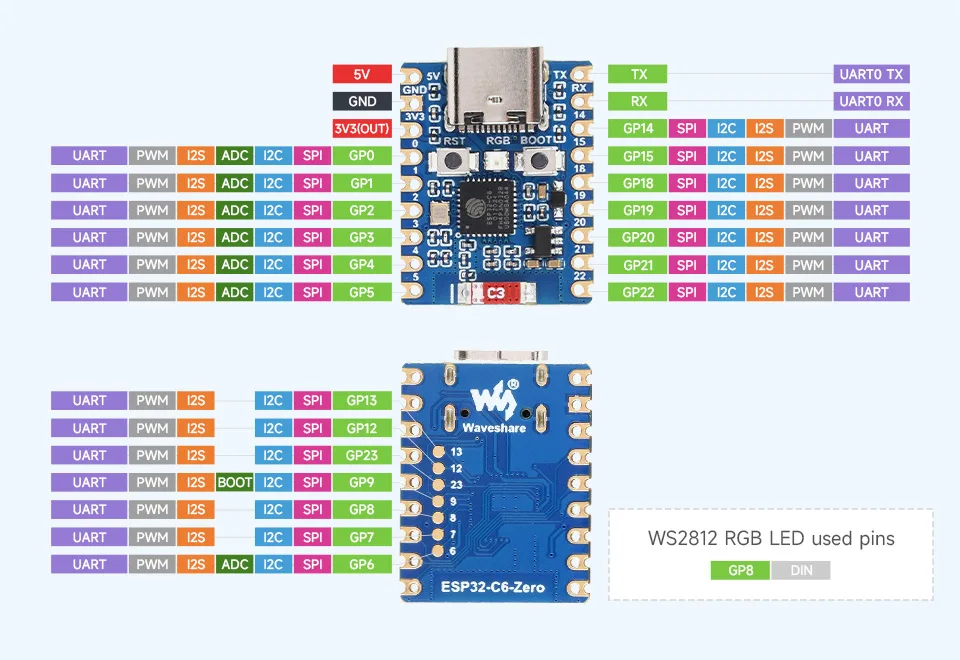

PINOUT

The board supports several programming environments:

• Arduino IDE: a widely used development environment, with many libraries and broad community support for ESP32 work.
• ESP-IDF (Espressif IoT Development Framework): the official Espressif framework for advanced ESP32 development, with full access to the hardware.
• MicroPython: lets you program in Python, which simplifies development and rapid prototyping of embedded applications.

Documentation

• Wiki: Official Waveshare documentation for the ESP32-C6-Zero-Basic-Kit
