ESP32-CAM Development Board: ESP32 with camera

Combines Wi-Fi, Bluetooth and a 2-megapixel camera on a board programmable with the Arduino IDE, with a microSD slot.

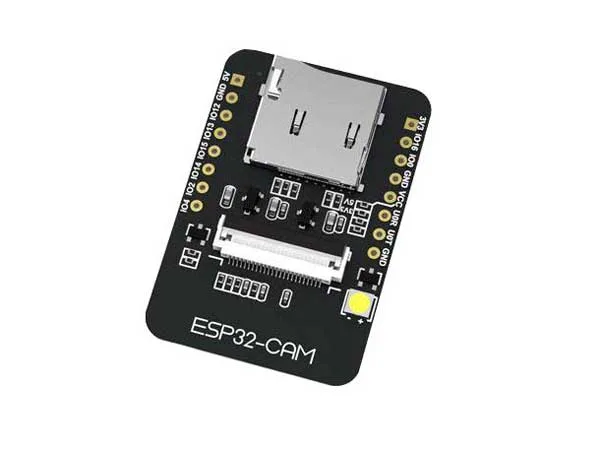

ESP32-CAM Development Board: ESP32 with camera - Image 1

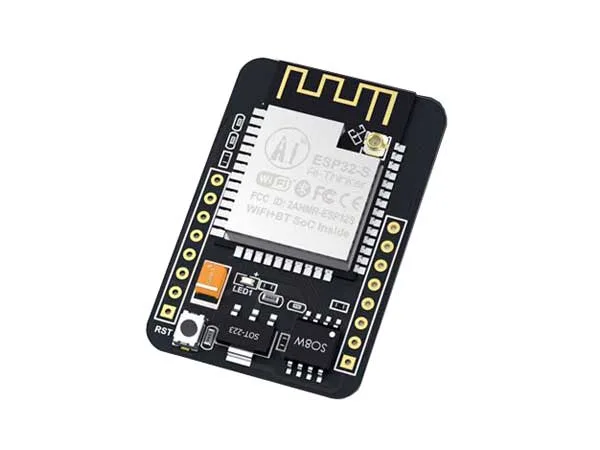

ESP32-CAM Development Board: ESP32 with camera - Image 3

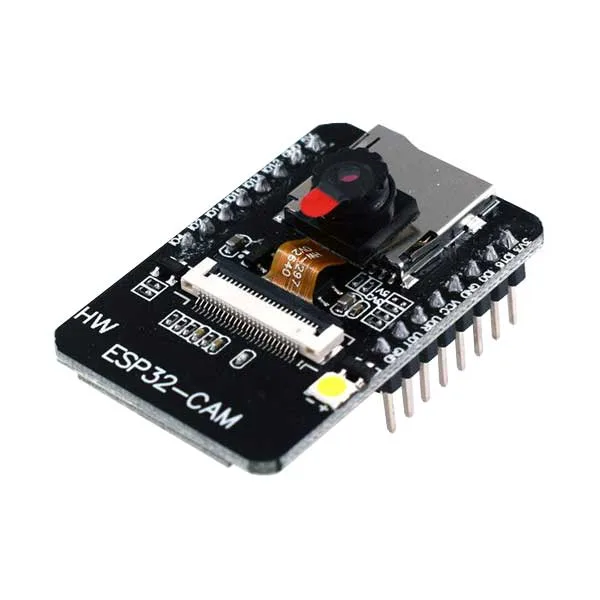

ESP32-CAM Development Board: ESP32 with camera - Image 4
ESP32-CAM Development Board: ESP32 with camera - Image 5

SKU 2846-ESP32-CAMEAN 8219671109543Item type: Assembled, Board,

Description

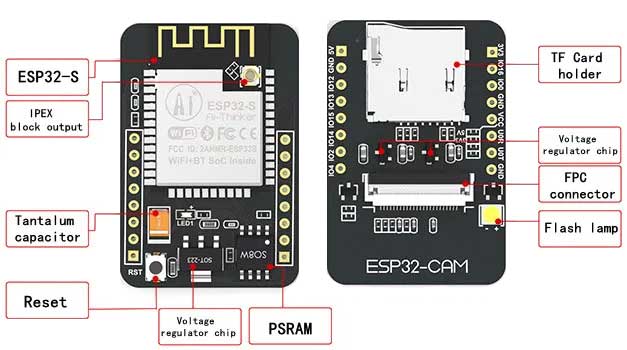

The ESP32-CAM Development Board by A.I. Thinker (or equivalent) is a small module that brings together 802.11 b/g/n Wi-Fi, dual-mode Bluetooth (classic and BLE), a small 2 Megapixel camera (OV2640), a slot for a mini SD card up to 4 GByte and 9 I/O pins. On the front there is also a high-brightness LED that can be used as a FLASH or as a light for the scene being filmed. Programmable directly from the Arduino IDE, it can be used in a range of IoT applications such as home devices, industrial wireless control, wireless monitoring, wireless QR code identification and many other IoT applications.
Details

Technical specifications
  • Wireless module: ESP32-S WiFi 802.11 b / g / n + Bluetooth 4.2 LE module with PCB antenna, u.FL connector, 32Mbit SPI flash, 4MBit PSRAM
  • Transmit power:
    – 802.11b: 17±2 dBm (@11 Mbps)
    – 802.11g: 14±2 dBm (@54 Mbps)
    – 802.11n: 13±2 dBm (@MCS7)
  • Receive sensitivity:
    – CCK, 1 Mbps: -90dBm
    – CCK, 11 Mbps: -85dBm
    – 6 Mbps (1/2 BPSK): -88dBm
    – 54 Mbps (3/4 64-QAM): -70dBm
    – MCS7 (65 Mbps, 72.2 Mbps): -67dBm
  • Camera:
    – FPC connector
    – Support for OV2640 (supplied with the board) or OV7670 cameras
    – LED illuminator
  • Current draw:
    – flash LED on at full brightness: 310 mA at 5 V
  • Size (mm): 40.5x27x4.5
  • Weight: 7 grams
Documentation and useful links
Projects using the ESP32-CAM
  • A guide to the ESP32 board with micro camera: ESP32-CAM
  • The vegetable garden that Tweets: sending images from an ESP32-CAM to Twitter
FAQ
  • During programming, that is after compiling, the Arduino IDE tells me that the COM port cannot be accessed, or that there is a communication problem with the device that is not down to the hardware.
    Some devices may work normally even though they are based on the CH340. We recommend uninstalling the drivers and installing them again. Click here to download the driver removal/installation tool.

Technical details

External memory mini SD card slot, max. 4 GB
Supported interfaces UART, SPI, I2C, PWM
I/O ports 9
Serial port speed 115200 bps by default
Antenna built into the PCB, 2dBi gain
Security WPA/WPA2/WPA2-Enterprise/WPS
Image format JPEG (OV2640 only), BMP, greyscale
Supply voltage 5 VDC (through the pins)
flash LED off 180 mA @ 5V
Deep-sleep 6 mA @ 5V min
Modem-sleep 20 mA @ 5V min
Light-sleep 6.7 mA at 5 V min
Operating temperature -20°C to + 85°C
Storage temperature -40°C + 90°C
