USB-SERIAL converter 3.3V-5V

Description

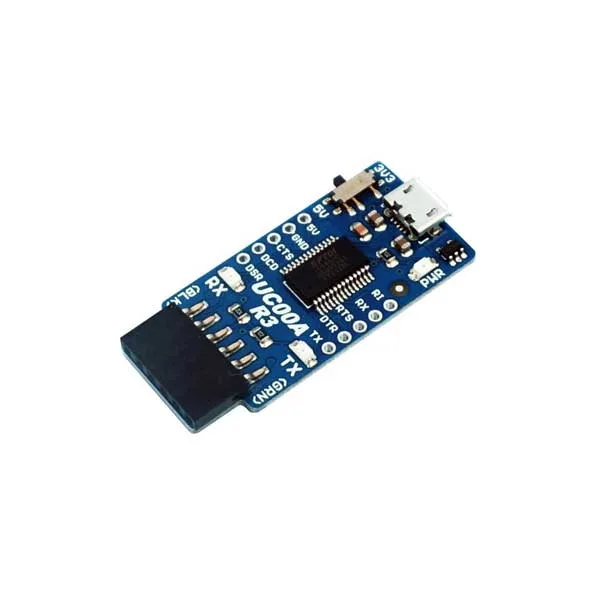

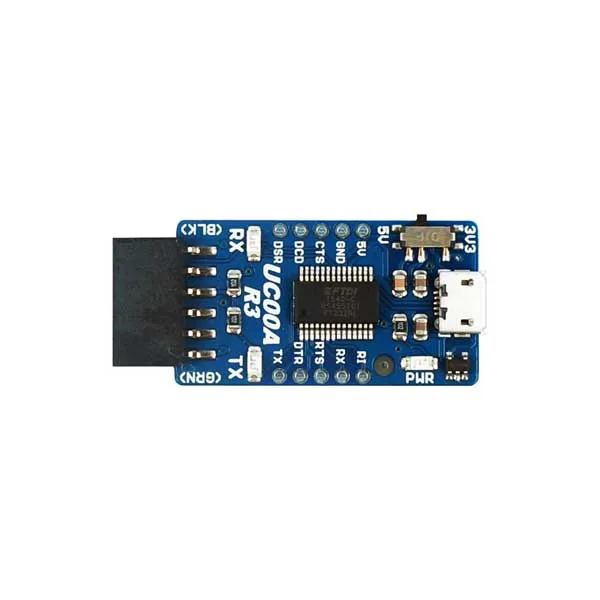

USB-to-UART converter based on the FTDI FT232RL chip. It features a 6-pin connector (DTR, RX, TX, VSEL, CTS, and GND), a 4-pin connector (VSEL, GND, TX, RX), three status LEDs (TXD, RXD, power), and a solder bridge for 3.3V or 5V operation. The chip pins are also accessible through the side pads. The converter is powered directly via the USB port. Supports Windows XP, Vista, Win7 (32-bit and 64-bit) and is recognized by the computer as a virtual COM port. Particularly suitable for programming the Espress Lite V2.0 board (not included). Dimensions (mm): 50x21x10.

Documentation and Useful Links

• UC00A Rev2.0 User’s Manual
• GUI Tutorial
• Driver Installation Guide For Win 7
• Fritzing Tutorial
• Fritzing File
• UC00A Rev1.0 User’s Manual
• Driver Installation Guide
• Latest Driver For Win/Mac/Linux
• Sample Application (PR23)
