USB to UART TTL 3.3V Cable, compatible with Raspberry Pi

USB - UART cable for asynchronous serial data transfer up to 3 Mbit/s at 3.3 V TTL. It is ideal for debugging and development thanks to full support for USB protocols and built-in signal handling.

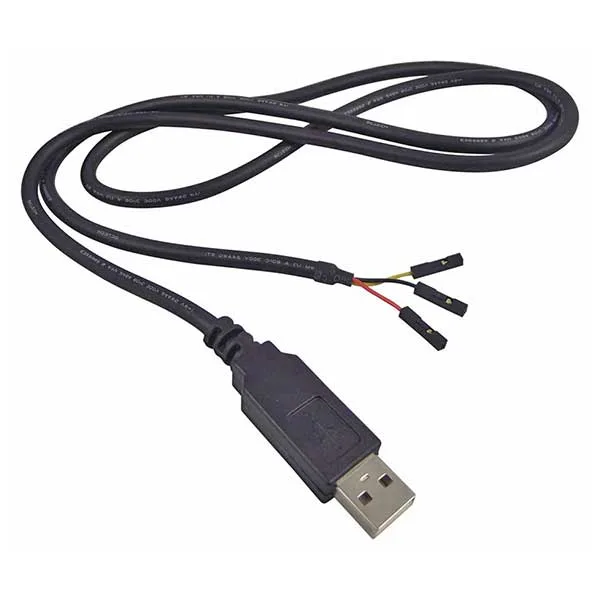

USB to UART TTL 3.3V Cable, compatible with Raspberry Pi - Image 1
USB to UART TTL 3.3V Cable, compatible with Raspberry Pi - Image 3

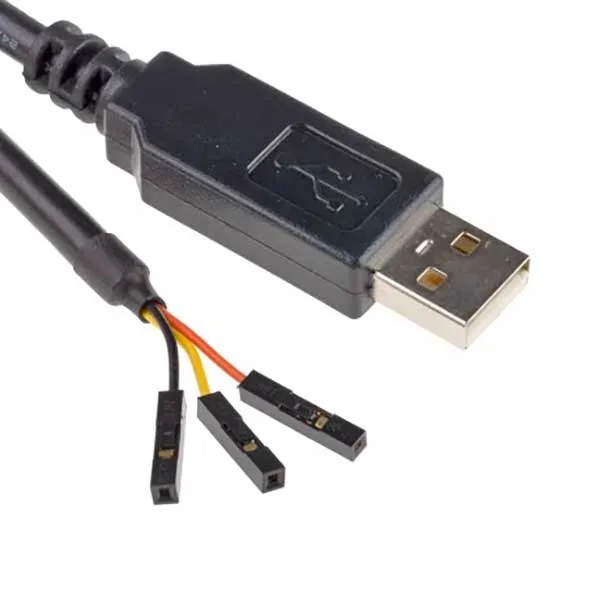

USB to UART TTL 3.3V Cable, compatible with Raspberry Pi - Image 4

SKU 7310-FTDITTL232RRPIEAN 8219671064279Item type: Assembled

Description

This USB to UART cable provides an asynchronous serial data transfer path via USB, capable of supporting data transfer rates from 300 bit/s to 3 Mbit/s at 3.3 V TTL levels. The chip handles all USB signaling and protocol requirements, allowing for an improved debugging and development environment where kernel debug messages can be accessed.

Technical details

Data rate 3 MBaud
USB speed Full Speed (12 Mbps)
Interfaces UART
USB connector Type A
End connector 3-way female header, 0.1" pitch
Cable length 1.0 m
Channels 1
I/O voltage TTL
USB class FTDI
Virtual COM port driver Yes
Internal FTDI IC FT232R
Operating temperature -40°C to +85°C
