USB-UART converter

Small USB-to-serial converter based on the FTDI FT232RL chip

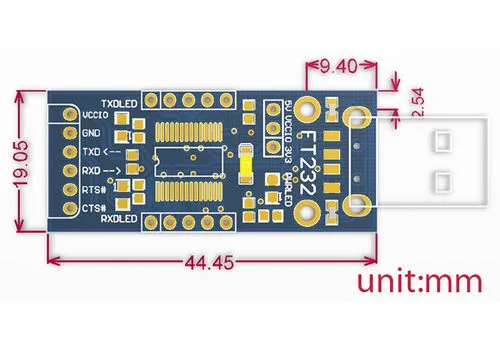

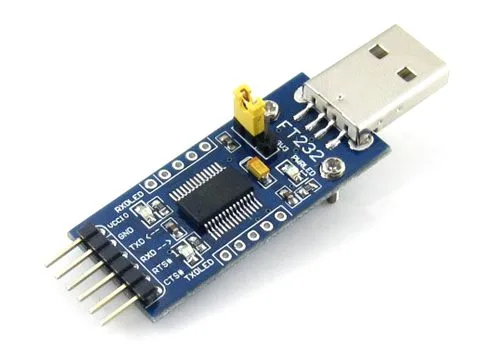

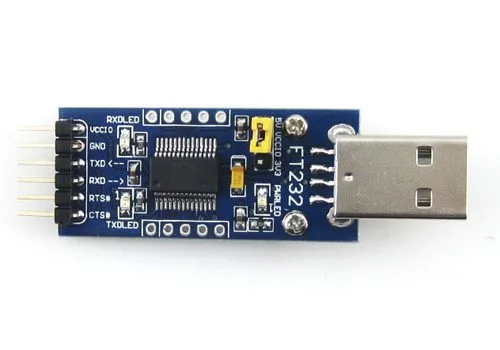

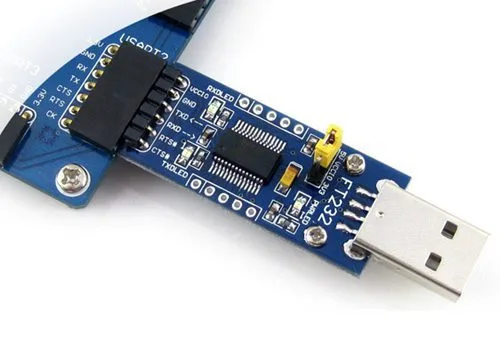

USB-UART converter - Image 1
USB-UART converter - Image 3
USB-UART converter - Image 4
USB-UART converter - Image 5
USB-UART converter - Image 6

SKU 2850-FT232USBUARTAEAN 8219671075756Item type: Assembled

Description

Small USB-to-serial converter based on the FTDI FT232RL chip. It features a 6-pin connector (TXD, RXD, RTS#, CTS#, VCC, and GND), three status LEDs (TXD, RXD, power), and jumpers for selecting power. The other chip pins are accessible through the side pads. The converter can be powered via USB or from the target board, while the device connected to the converter can be powered at 5V or 3V from USB. Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10 operating systems.
