USB TO UART CONVERTER 3.3V AND 5V

Small USB to UART converter based on the CH340 chip

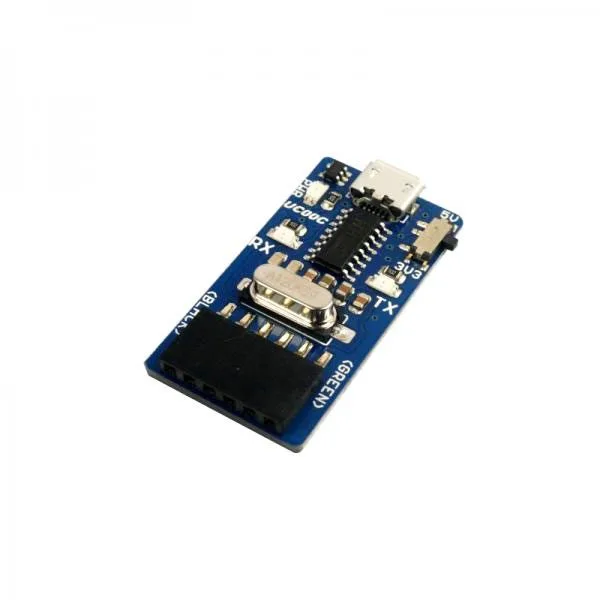

USB TO UART CONVERTER 3.3V AND 5V - Image 1

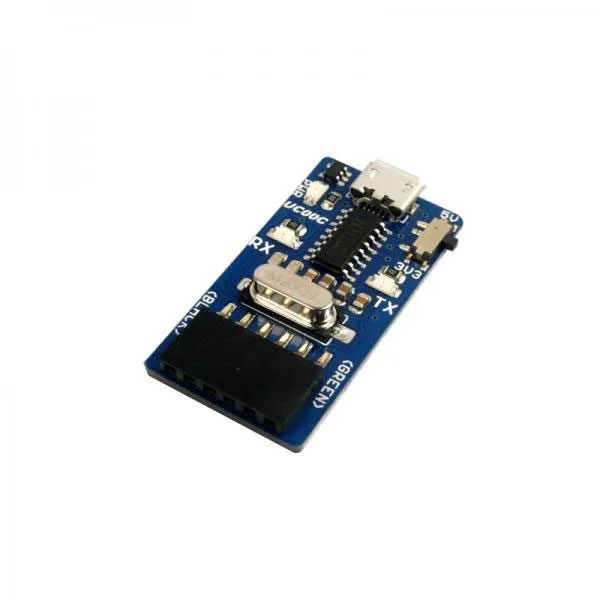

USB TO UART CONVERTER 3.3V AND 5V - Image 3

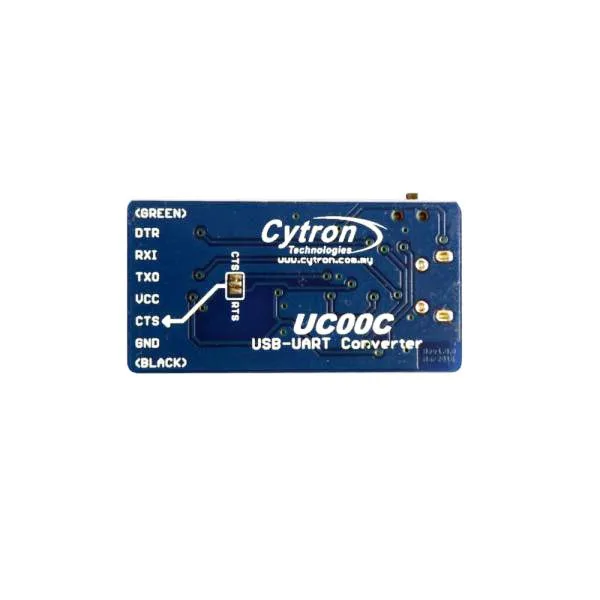

USB TO UART CONVERTER 3.3V AND 5V - Image 4

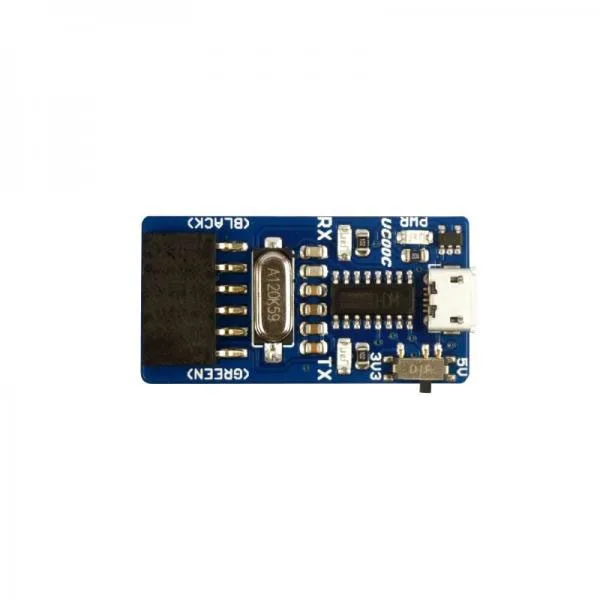

USB TO UART CONVERTER 3.3V AND 5V - Image 5

SKU 1686-USBTOUARTEAN 8219671083072Item type: Assembled

Description

Small USB to UART converter based on the CH340 chip. The pinout of its 6-pin connector (DTR, RXD, TXD, VCC, CTS and GND) matches that of the FTDI cable, so it suits programming Arduino-type or compatible devices (sketch uploading) and can also be used for general purposes. The board has a miniature switch to select 3.3 V or 5 V operation and three status LEDs (power, TX, RX). Powered at 5V through the micro USB connector.
Compatible with Windows 7, 8 and 10. The PC sees it as a virtual COM port. Dimensions (mm): 39.5×20.5×5.7.
Documentation and useful links
