USB to TTL converter with CP2102

Small USB-TTL converter based on the CP2102 chip

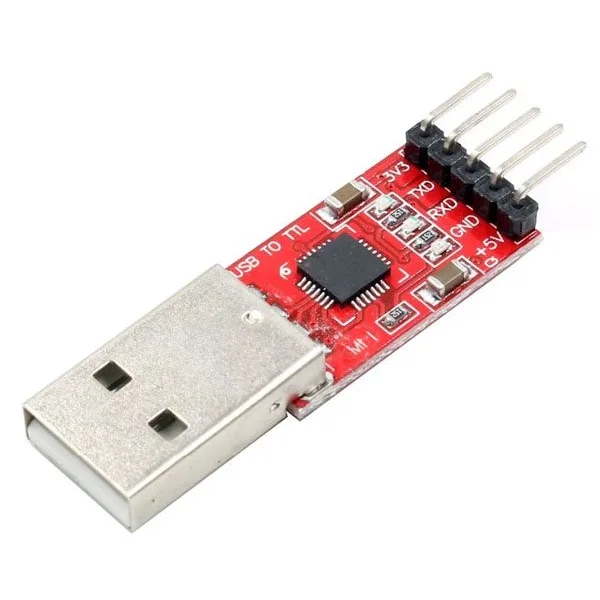

USB to TTL converter with CP2102 - Image 1

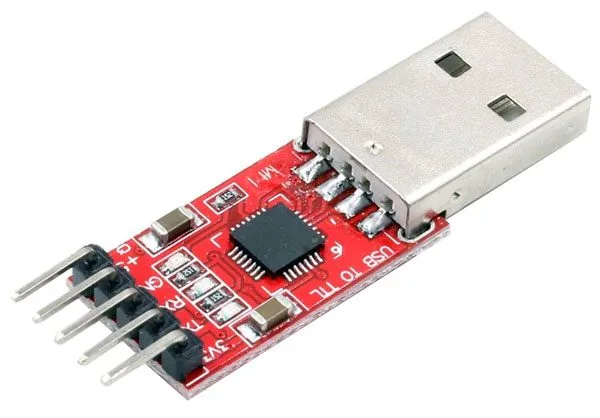

USB to TTL converter with CP2102 - Image 3

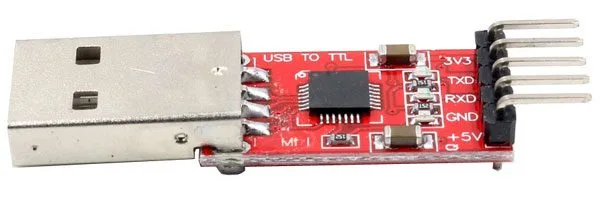

USB to TTL converter with CP2102 - Image 4

SKU 2846-USBTTL2102EAN 8219671104074Item type: Assembled

Description

Small USB-TTL converter based on the CP2102 chip. It has a male type A USB connector on one side and a header with the 3V3, TXD, RXD, GND and +5V pins on the other. Compatible with Windows 98SE, 2003, XP, Vista, 7, Mac OSX , Linux. The PC sees the converter as a virtual COM port. Baud rate: 300 bps to 1.5 Mbps, converter supply: 5 Volt, logic voltage: 5V, output current at 3.3 V: 100 mA. Dimensions including USB connector (mm): 42x15x6.
