ESP8266 Debugger Adapter
Based on the CP2014 USB-to-TTL converter chip, this adapter lets you upload firmware or Arduino code to the ESP8266 Wi-Fi module (not included, see related products)
SKU 3085-ESP8266DEBEAN 8219671101370Item type: Assembled, Shields & add-onsESP8266 / ESP32
Description

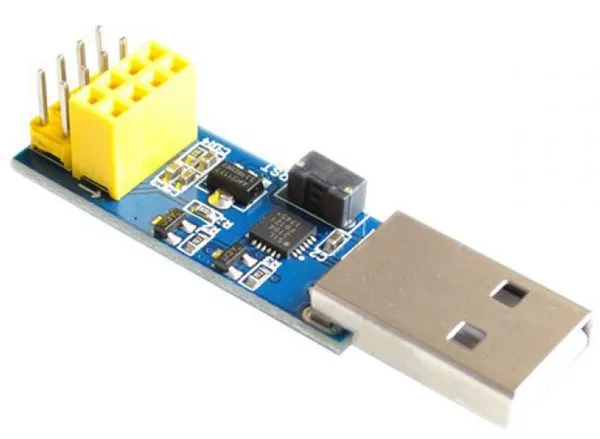

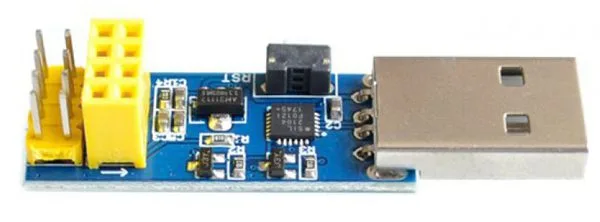

Based on the CP2014 USB-TTL conversion chip, this adapter lets you flash firmware or Arduino code onto the ESP8266 Wi-Fi module (not included, see related products). The adapter features a 2×4 female connector dedicated to the ESP8266, a reset button, a 3.3 V voltage regulator, and a 2×4 male connector with: 3V3, GND, RST, IO0, IO1, EN, TXD, and RXD.
ESP8266 Module Technical Specifications (not included)
- 802.11 b/g/n
- Wi-Fi Direct (P2P), soft-AP
- Integrated TCP/IP stack
- Output power +19.5dBm in 802.11b mode
- SDIO 1.1/2.0, SPI, UART
- STBC, 1×1 MIMO, 2×1 MIMO
- A-MPDU & A-MSDU aggregation & 0.4 ms guard interval
- Integrates WEP, TKIP, AES, and WAPI
LuaLoader Software Screenshot
Documentation and Useful Links
Technical details
| Wake up and packet transmission | < 2ms |
|---|---|
| Power supply | 3.3 Vdc |
| Standby consumption | < 1 mW (DTIM3) |
| Weight | 3 grams |
