Flat stepper motor – 0.8 A
4-wire bipolar flat stepper motor
SKU 2860-STEPMOTFLAT1EAN 4250236821641Item type: AssembledActuators, Motors
Description

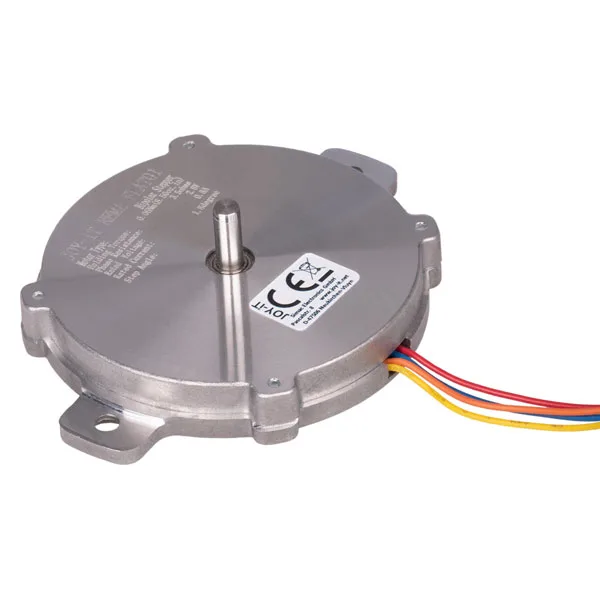

Flat bipolar stepper motor with 4 wires. Ideal for use with CNC, 3D printers, robotics, and all applications requiring precision in angular displacement and rotation speed. The package includes: the stepper motor and a pre-wired cable with a connector on one end and tinned wires on the other.
Technical specifications
- Connection: 4-pin JST connector
- Operating temperature: -10°C to +50°C
- Dimensions (mm): Ø 60 x 9.6
- Weight: 75 g

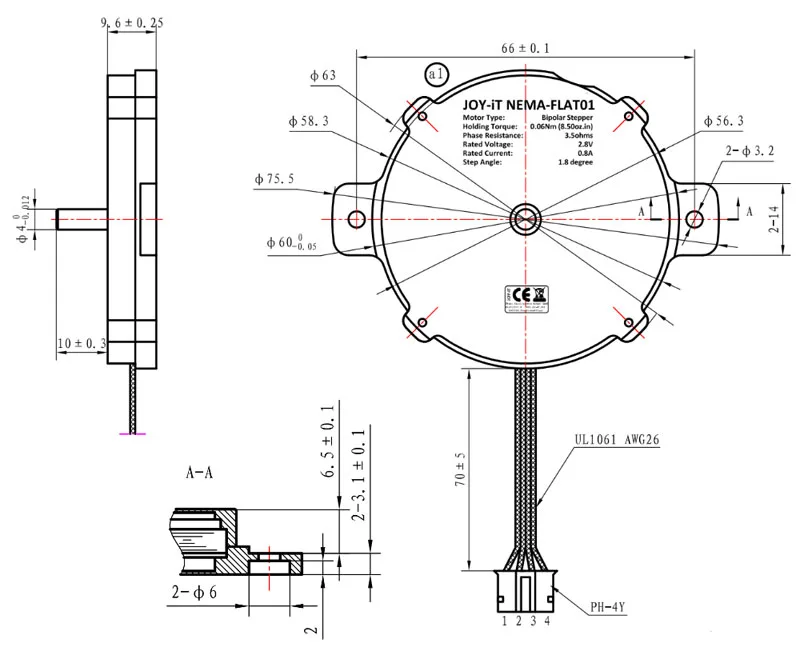

Click on the image to enlarge
Documentation and useful links
Technical details
| diameter | 4 mm |
|---|---|
| length | 10 mm |
| Number of steps | 200 |
| Step angle | 1.8° |
| Number of wires | 4, approximately 70 mm long |
| Number of phases | 2 |
| Rated voltage | 2.8 V |
| Phase current | 0.8 A |
| Resistance per phase | 3.5 Ω |
| Inductance per phase | 1.8 mH |
| Insulation resistance | 100 MΩ at 500 VDC |
| Insulation class | B (130°) |
| Holding torque | 60 mNm |
| Static torque | 8 mNm |
