CNC Shield for Arduino
Paired with an Arduino (not included), this shield lets you drive a CNC router or a 3D printer
SKU 8300-CNCSHIELDEAN 8219671105729Item type: Assembled, Shields & add-onsArduino, Arduino compatible, Control electronics
Description

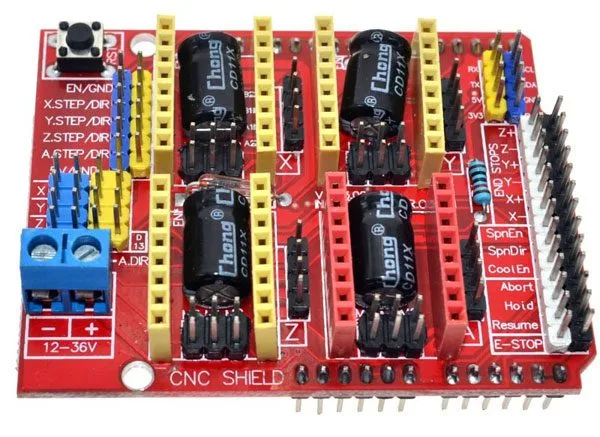

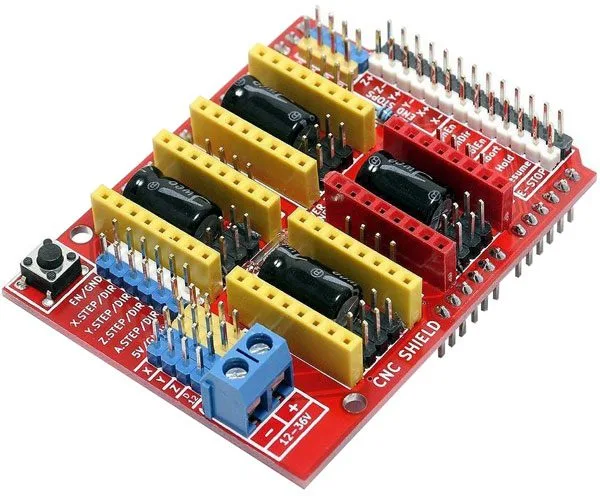

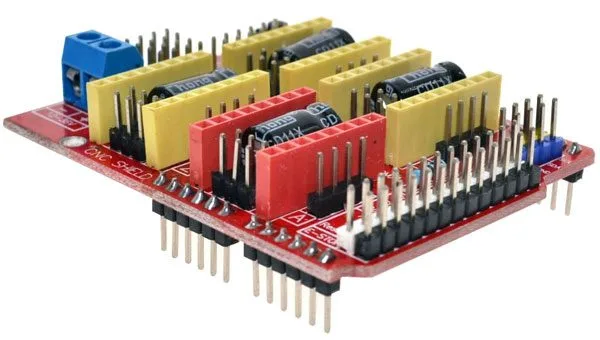

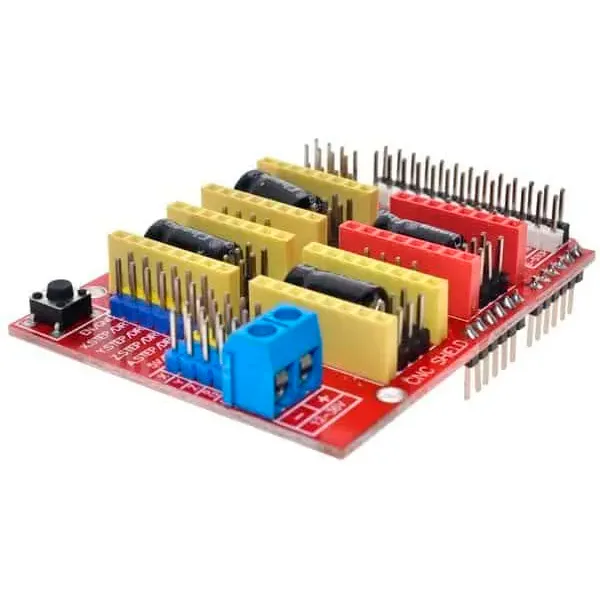

| Paired with an Arduino (not included), this shield lets you drive a CNC router or a 3D printer. It takes 4 Pololu-compatible A4988 or DRV8825 drivers (not included), which between them can run up to 4 stepper motors (X, Y, Z and A axes) .
It has a reset button and connectors for E-Stop and axis limit switches, plus spindle enable and direction. Depending on the drivers fitted, it can be given a supply voltage of 12 to 36 volts. Dimensions (mm): 69×52.5×19. Compatible with GRBL 0.8c. (Open source firmware that runs on an Arduino UNO and turns G-code commands into stepper signals). PLEASE NOTE. the pack does not include the drivers, the Arduino or the stepper motors (see related products).ounted on Arduino |
||||||||||||||||
|
Arduino to Shield I/O mapping
|
||||||||||||||||
|
||||||||||||||||
| Documentation and useful links | ||||||||||||||||
Technical details
| Dimensions (mm) | 69x52.5x19 |
|---|---|
| GRBL compatible | Yes |
| Drivers that can be fitted | 4 of type A4988, DRV8825 or compatible |
| Max. current per stepper motor | 2 A |
| Power supply | 12 to 36 VDC |
