Gearmotor 12V – 50 rpm
High-quality 12 VDC gearmotor with a 171:1 reduction ratio. Ideal for applications that need more torque and less speed.
SKU 1606-JGA25370BEAN 8219671076869Item type: AssembledActuators
Description
| High-quality 12Vdc – 50 rpm gearmotor designed to deliver outstanding performance and reliability in a wide range of applications. With its 171:1 reduction ratio it gives a marked increase in torque and a considerable reduction in speed, which makes it ideal for projects that need precise motion control.
The gearmotor uses high-precision metal gears, which ensure long life and efficient power transmission. Its rugged construction lets it handle significant loads without any loss of performance. Running from a 12V supply, this gearmotor can be used across many applications and sectors: robotics, industrial automation, home automation and more. The output shaft is 12 mm long and 4 mm in diameter, with the usual D-shaped flat, which makes it easy to integrate and mount in different devices. |
||
|

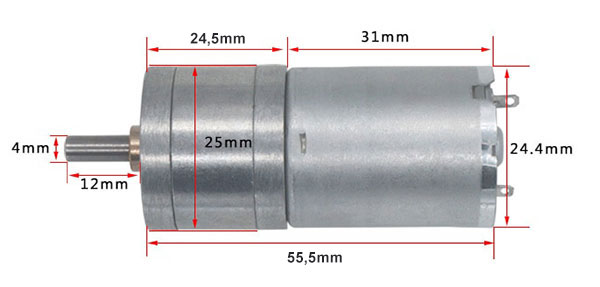

Dimensions (mm)
|
||
 |
Technical details
| Rated voltage | 12 Vdc |
|---|---|
| Reduction ratio | 171:1 |
| No-load speed | 50 rpm |
| No-load current | 100 mA |
| Current under load | 0.40 A |
| Rated speed under load | 35 rpm |
| Rated torque under load | 4 kg-cm |
| Rated power under load | 4.8W |
| Stall current | 2.6 A |
| Stall torque | 18.8kg.cm |
| Shaft diameter | 4 mm |
| Mounting screws | M3 (not included) |
| Dimensions | diameter 25 mm / body length 55.5 mm |
| Weight | 110 grams |
