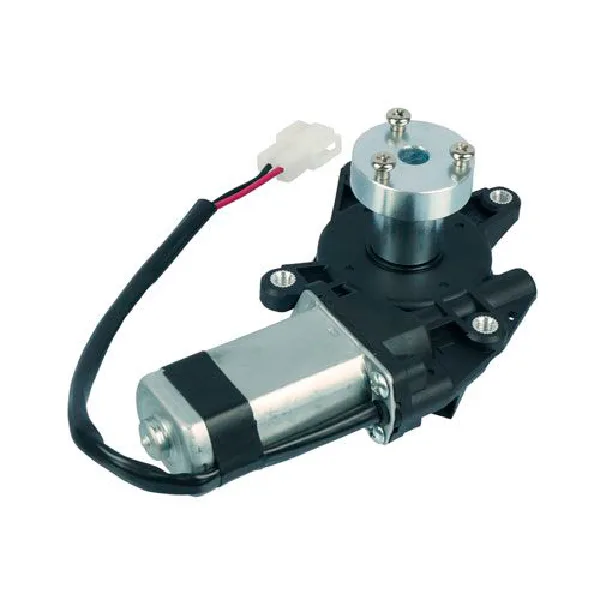

High-power motor with HUB – left-hand

Powerful DC motor, used as a window lift motor in some foreign car models (left-hand side); this version is supplied with a HUB for fitting wheels
High-power motor with HUB - left-hand - Image 1
High-power motor with HUB - left-hand - Image 3
High-power motor with HUB - left-hand - Image 4

SKU 1686-MOPWLHUBEAN 8219671073134Item type: Assembled

Description

Powerful DC motor, used as a window lift in some foreign car models (left side), this version is supplied with a hub for mounting wheels. Powered at 12 Vdc, it draws less than 3A without load and has a speed of 85 rpm. Torque: 30 kg·cm. Weight: 1.8 kg. Particularly suitable for building robots. Note: the wheel is not included.

Technical details

Torque 30 kg·cm
Weight 1.8 kg
Rated voltage 12 Vdc
no load <3 A
under load <7 A
stalled <20 A
No-load speed 85 rpm
Rotation direction according to polarity
Dimensions (mm) 166x112x35
