Infrared Proximity Sensor

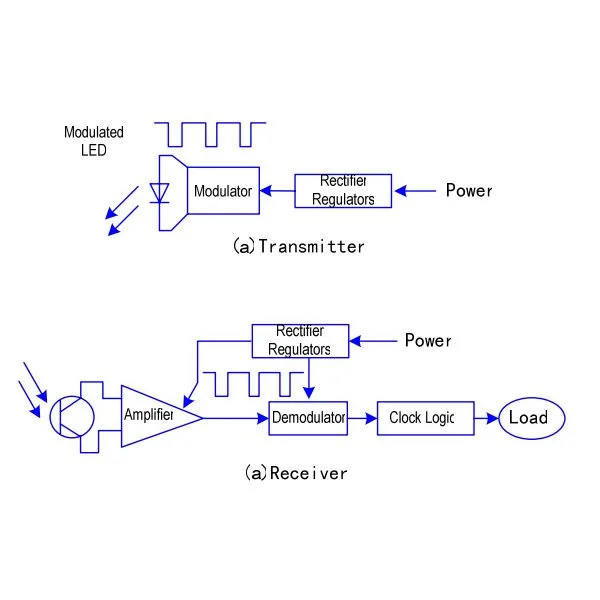

Proximity sensor made up of an infrared emitter modulated by a precise signal and a receiver based on a photodiode sensitive to the emitted band
SKU 2846-IRFOTOSENSEAN 8219671082464Item type: AssembledSensors
Description
Infrared proximity sensor, designed to detect objects from 3 to 80 cm away, reliably and quickly.
This sensor pairs a modulated infrared emitter with a sensitive receiving photodiode, for accurate detection that is immune to external disturbance such as ambient light or other unwanted emissions.
The signal is processed in less than 2 ms, which makes this sensor perfect for applications that need a fast, stable response.
With rugged plastic construction and reliable operation between -25°C and +55°C, it is ideal for electronics projects, robotics and automation applications.
 |
Technical details

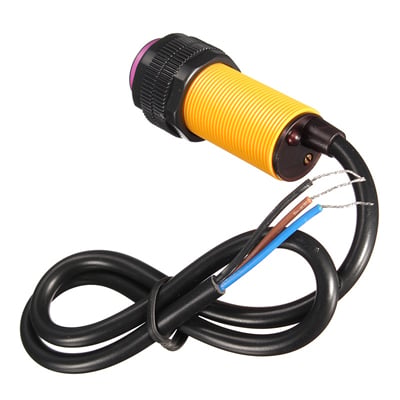

| Black wire | open collector output - max. 100 mA |
|---|---|
| Brown wire | VCC |
| Blue wire | GND |
| Power supply | 5 Vdc |
| Consumption | about 25 mA |
| Detection range | 3 to 80 cm |
| Response time | < 2 ms |
| Wire length | about 35 cm |
| Material | plastic |
| Operating temperature | -25°C to +55°C |
| Dimensions (mm) | diameter 17.6x49.5 |
