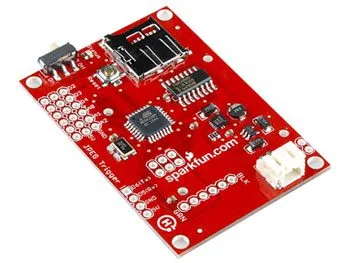

JPEG Trigger shield for JPEG UART camera

Description

Makes it easier to use the color JPEG micro camera with UART interface (7300-JPEGCAMERA). To take a photo, all you have to do is ground one of the three digital pins (D2, 3, or 4), or apply 5V to one of the three analog pins (A0, 1, or 2). Each photo taken is saved as a single 320×240 JPEG file. The default firmware requires a microSD card formatted as FAT16 to be inserted into the microSD slot. After powering the board, the status LED turns on indicating that the board is ready to be activated. If the LED starts blinking, it means the microSD card has not been initialized, so you need to make sure it has been formatted correctly. Power: 5 V, dimensions: 60.90 mm x 42.40 mm.
Note: the strips needed to mount the shield on an Arduino are not included.

Documentation and Useful Links

• Schematic
• Eagle Files
• Latest Source Code
• Supporting Libraries
