Kit of 10 solar energy experiments

Description

This kit of 10 experiments has been designed to introduce anyone to the world of solar energy in a simple way, allowing them to learn and put into practice simple circuits. With these circuits, the energy produced by a solar panel can be used as the sole power source or as a charging system for common rechargeable batteries.

No equipment is needed to try out the 10 projects included in the kit, not even a soldering iron, since the breadboard system allows any kind of electrical connection between the supplied components by inserting them into the board, following the illustrations. For those who already have a basic knowledge of electronics, each project is accompanied by a circuit diagram and a technical description that is also understandable for beginners.

The kit comes with an illustrated manual that will guide you step by step through the 10 experiments.

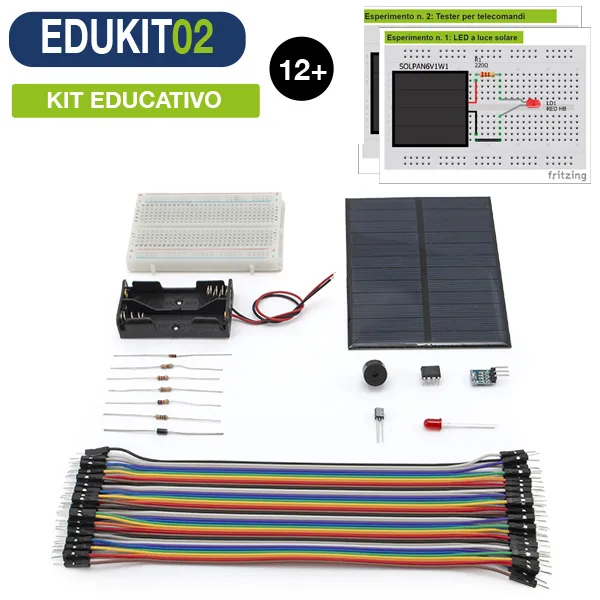

List of materials included in the kit

• 1 pc. breadboard, 400 tie points
• 1 pc. set of assorted jumper wires
• 1 pc. solar panel
• 1 pc. programmed ATMEL ATtiny85P-PU microcontroller
• 1 pc. DC-DC 3.3V transistor module
• 1 pc. PNP transistor BC557
• 1 pc. Schottky diode 1N5819
• 1 pc. Schottky diode BAT85
• 1 pc. passive buzzer
• 1 pc. red LED 5 mm high brightness
• 1 pc. resistor 100 ohm ¼ Watt
• 1 pc. resistor 220 ohm ¼ Watt
• 1 pc. resistor 2.2 kohm ¼ Watt
• 1 pc. resistor 10 kohm ¼ Watt
• 1 pc. resistor 12 kohm ¼ Watt
• 1 pc. battery holder (for 2 AA)
