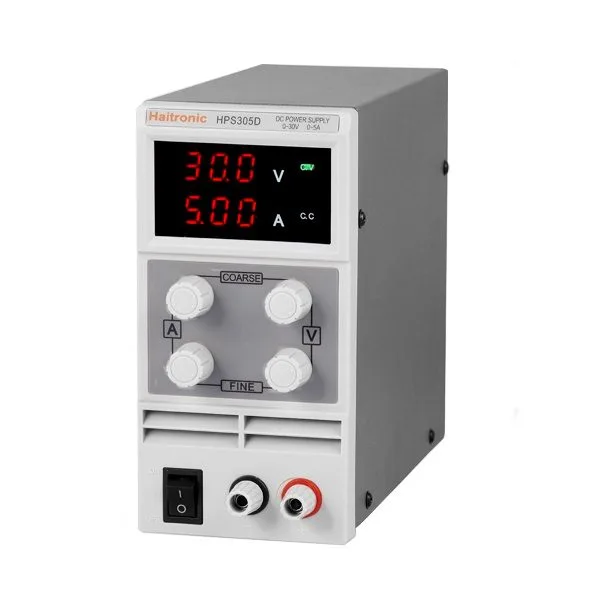

Laboratory Power Supply 0-30 V / 0-5 A
Switching laboratory power supply with output voltage adjustable from 0 to 30 VDC and maximum current of 5 A
SKU 1606-AL3005NEAN 8219671111973Output voltage: Manually adjustableBench power supplies
Description
Laboratory switching power supply with adjustable output voltage from 0 to 30 VDC and maximum current of 5 A. The LED display shows the voltage and current supplied by the power supply. Dual voltage/current adjustment (fine and coarse) and overload indication.
Metal case, plastic front panel. Complete with mains power cable and test leads with crocodile clips on one end and fork terminals on the other.
Technical details
| Power supply | 110 VAC / 220 VAC, 50/60 Hz |
|---|---|
| Output voltage | 0 to 30 VDC adjustable |
| Output current | 0 to 5 A adjustable |
| Voltage resolution | 10/100 mV |
| Current resolution | 1/10 mA |
| Voltage display accuracy | ± 1% +1 digit |
| Current display accuracy | ± 1% +2 digits |
| Mains protection | 3 A fuse – 220 VAC |
| Operating temperature | 0°C to +40°C |
| Dimensions (mm) | 220 (length) x 165 (height) x 85 (width) |
| Weight | 1.350 kg |
