Linear bench power supply, 2 outputs 0-30 V/3 A and fixed output 5V/3 A

Linear bench power supply with a dual output adjustable in voltage and current (0 to 30 Vdc / 0 to 3 A) and a fixed output at 5 Vdc / 3 A

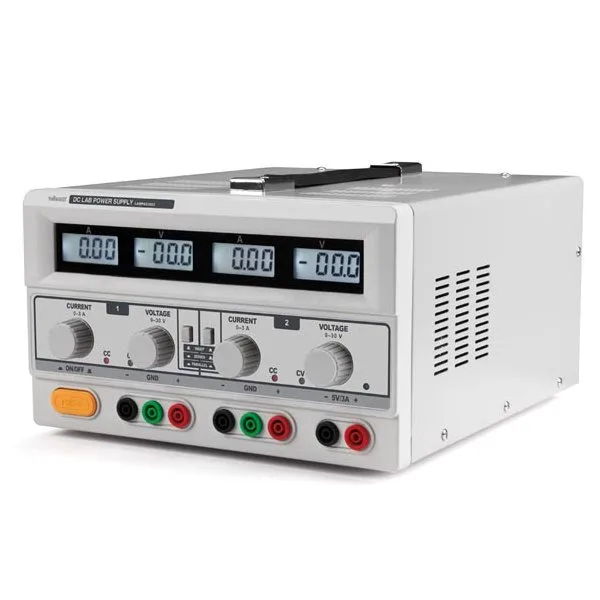

Linear bench power supply, 2 outputs 0-30 V/3 A and fixed output 5V/3 A - Image 1

SKU 8220-LABPS23023EAN 5410329595258Output voltage: 5 Vdc, Manually adjustable

Description

Linear bench power supply with dual output adjustable in voltage and current (0 to 30 Vdc / 0 to 3 A) and fixed output at 5 Vdc / 3 A. Features a backlit LCD display for voltage and current, fine and coarse voltage and current adjustments, protection modes: current limiting, output connectors: IEC1010, mains protection: fuse. Color: white-gray.

Technical details

protection modes current limiting
output connectors IEC1010
mains protection fuse
Color white-gray
Mains input 220 Vac - 50 Hz
Voltage 0 to 30 Vdc
Current 0 to 3 A
Fixed output 5 Vdc / 3 A
Ripple voltage < 1 mV
Dimensions (mm) 360x265x165
Weight 7.139 kg
