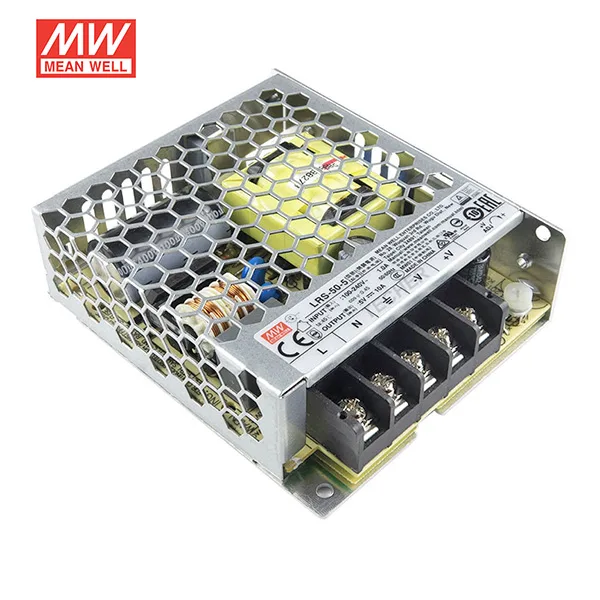

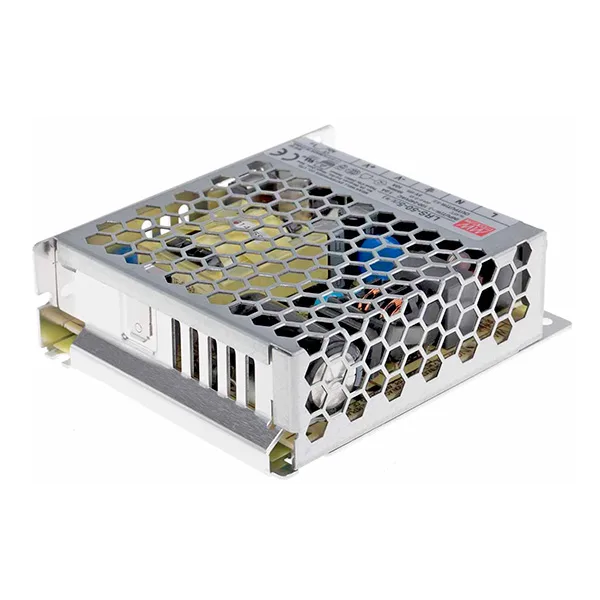

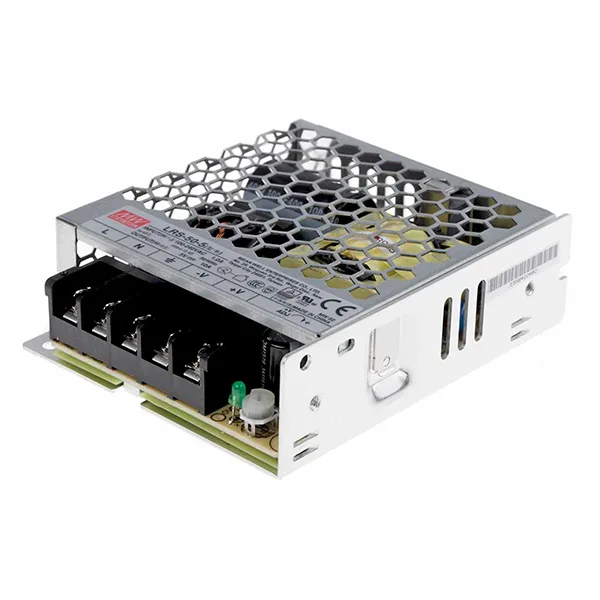

Switching Power Supply 5V – 50W
SKU 8244-LRS-50-5EAN 5410329677060Output voltage: 5 VdcBench power supplies
Description
|
High-efficiency 5V – 50W switching-mode laboratory power supply with long life and high reliability. This switching-technology power supply features a sturdy metal enclosure and a natural-convection cooling system. It operates with an input voltage ranging from 85 to 264 Vac and delivers a stable 5-volt output voltage with a current of 10 A. Fitted with a power-on indicator LED, the power supply ensures maximum safety thanks to built-in protection against short-circuit, overload, overvoltage and over-temperature. Switching technology provides a significant reduction in weight and extremely high energy efficiency, ideal for applications that require efficiency and reliability. |
|
Technical specifications
|
|
|
Documentation and useful links
|
Technical details
| frequency range | 47-63 Hz |
|---|---|
| Inrush current | 50 A / 230 Vac (cold start) |
| Leakage current | <0.75 mA / 240 Vac |
| Output voltage | 5 Vdc |
| Output voltage range | 4.5 V to 5.5 V (adjustable) |
| Output current | 10 A |
| Current range | 0 to 10 A |
| Ripple and noise (max) | 80 mVp-p |
| Output power | 50 watt |
| Efficiency | 88% |
| Connection | 5-pole terminal block |
| overload | 110-150% of rated output power |
| overvoltage | 5.9 - 7.3 V |
| Safety standards | UL60950-1, TÜV EN60950-1 approved |
