LPG sensor

Sensor able to detect the presence of LPG (Liquefied Petroleum Gas) in the air at concentrations between 300 and 10,000 ppm

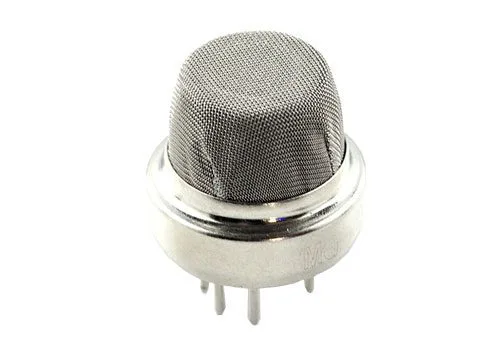

LPG sensor - Image 1

SKU 2846-MQ6EAN 8219671072571Item type: Assembled

Description

Sensor capable of detecting the presence of LPG (Liquefied Petroleum Gas) in the air at concentrations between 300 and 10,000 ppm. It features high sensitivity and fast response times. The control circuit is very simple; all you need to do is supply 5V, add a load resistor, and connect the output to an ADC.

Technical details

Power supply 5 VDC or AC
Operating temperature -10°C to +50°C
Heater consumption less than 950 mW
Dimensions (mm) diameter 19.6 x 14.5
LPG 300 ppm - 10,000 ppm
