Metal micro gearmotor 12V – 60 rpm

Metal micro gearmotor suitable for building robots, automation projects, etc.

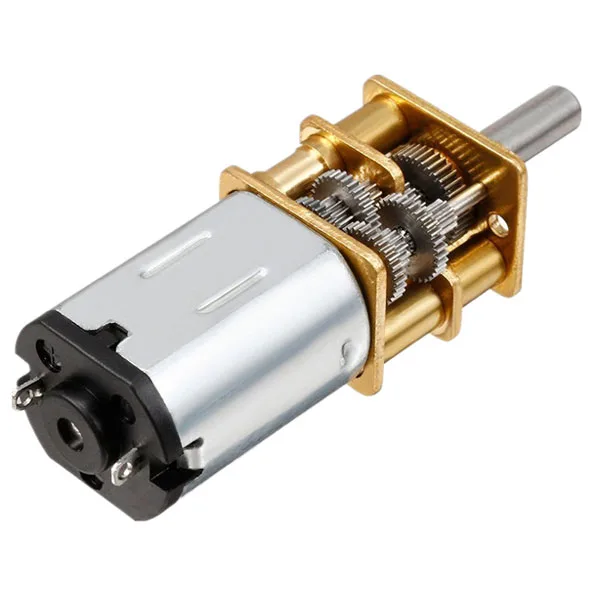

Metal micro gearmotor 12V - 60 rpm - Image 1

SKU 8300-MMG12V60EAN 8219671076869Item type: Assembled

Description

Metal micro gearmotor operating at 12 Vdc with a speed of 60 rpm and a 298:1 reduction ratio. Metal “D”-shaped shaft, 9.27 mm long; the brass front plate has two threaded holes for mounting M1.6 screws (1.6 mm diameter, 0.35 mm thread pitch). Weighs approximately 10 grams. Direction of rotation depends on polarity. Particularly suitable for building robots, automation projects, etc.

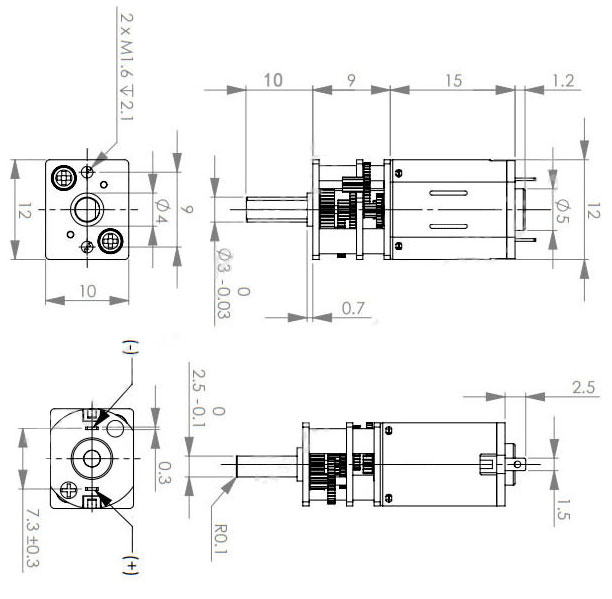

Dimensions (mm)
click to enlarge

Technical details

Rated voltage 12 Vdc
Reduction ratio 298:1
Maximum torque 1.8 kg·cm
No-load speed 60 rpm
Stall current 190 mA
No-load current draw 60 mA
Operating temperature -20°C to +60°C
Weight approx. 10 grams
