Metal Microswitch with Roller Lever

Fitted with a sturdy metal roller lever
Metal Microswitch with Roller Lever - Image 1

SKU 8220-MS12-REAN 5410329596880Colour: SilverContact configuration: SPDTLighting: NoneSwitch action: ON-(ON)Item type: Buttons & switches

Description

Metal microswitch with roller lever, designed to deliver outstanding performance in any application. Fitted with one normally-open (N.O) contact and one normally-closed (N.C.) contact, it offers versatility and safety, adapting perfectly to a wide range of technical needs. Thanks to its solder terminals and 4.8 mm Faston connectors, installation is quick and easy, while mounting can be done with screws or adhesive, depending on your needs.

MECHANICAL FEATURES

Technical details

Actuation force 60 grams
Contact resistance 15 mohm
Insulation resistance 100 Mohm s (500 Vdc)
Dielectric strength 1000 Vac for 1 minute
Average mechanical life 1,000,000 operations
Average electrical life 100,000 operations (at rated load)

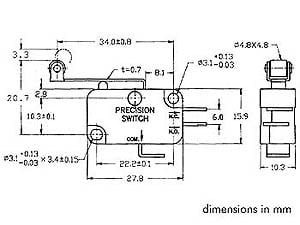

Dimensions 15.9 x 27.8 x 10.3 mm
Current/Voltage 12 A / 125 VAC, 6 A / 250 VAC
Return force 7g
