Microwave Motion Sensor with Daylight Sensor
A smart switch with a microwave motion sensor and a daylight sensor that will save you energy by switching electrical devices on and off automatically, up to a maximum rated power of 200W.
SKU 8100-FR786EAN 8055323217842Presence & intrusion sensors
Description
| A smart switch with a microwave motion sensor and a daylight sensor that will save you energy by switching electrical devices on and off automatically, up to a maximum rated power of 200W. It has an IP65 protection rating, so it can also be installed outdoors. |
| How it works |

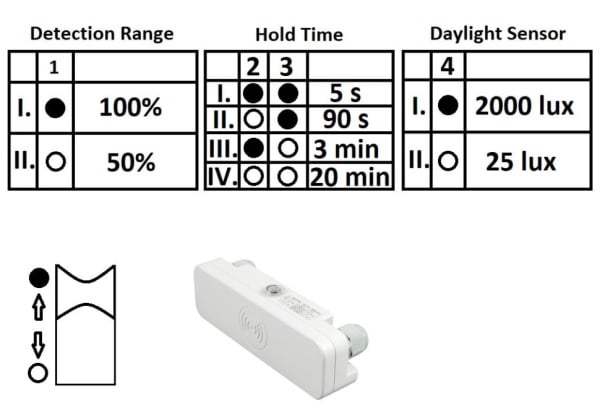

| This smart switch can be adapted to different operating requirements. You can choose whether it should switch the load on only in the dark or at all times, along with the sensitivity and how long the load stays on.
If the daylight sensor threshold is set to 2000lux, the output load is switched on whenever moving objects or people are detected, whether it is day or night. The detection range can be selected according to where the sensor is installed, between 5m (selector set to 50%) and 10m (selector set to 100%).
|
Technical details
| Input | 220-240V AC, 50/60Hz, about 0.9W |
|---|---|
| Selectable daylight sensor threshold | 25lux or 2000lux |
| Radio frequency (RF) | 5.8GHz CW radar, ISM band |
| Installation height | 1.5 - 3.5m |
| Rated load | 200W max |
| Detection angle | 180° |
| Selectable detection range | 5m (50%) or 10m (100%) |
| On-time | 5s, 90s, 3min, 20min |
| RF transmit power | <0.2mW |
| Dimensions | 115x36x25mm (excluding cable glands) |
| Weight | about 74g |
